Mulin MLSK35-G(LSF) 5 Button Switch & Junction Box Kit for Power Recliner

• This is the authentic MLSK35-G(LSF) switch and junction box kit (manufacturer part number 5086995), designed for power recliners equipped with two motors.

• This switch is a direct replacement for the MLSK35-G(LSF) and MLSK35-G(L).

• This switch is compatible with select Catnapper Recliners.

Includes:

• 5-button switch with integrated USB charging port

• Junction box with two splitters


Connections:

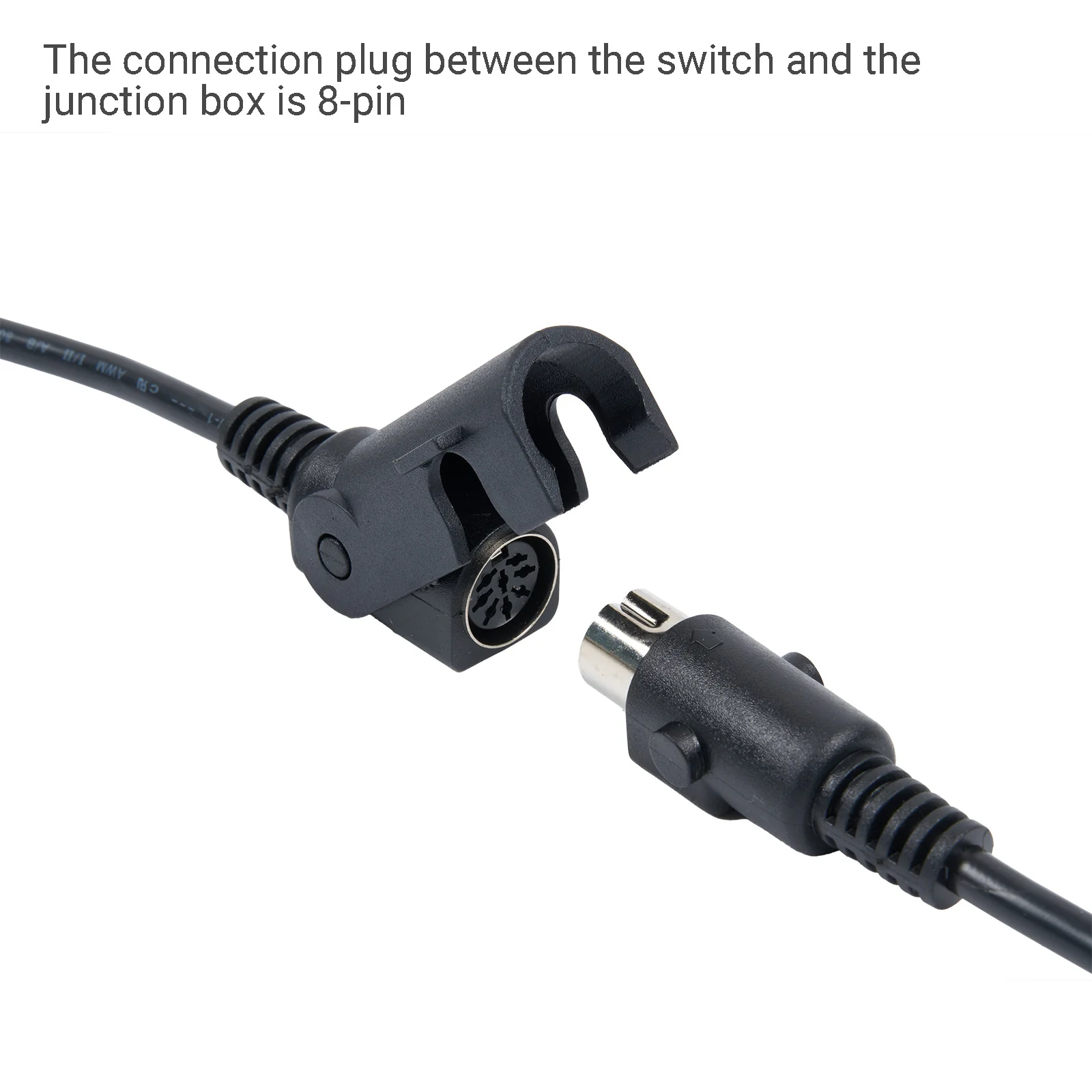

• Switch connects to the junction box via an 8-pin male plug.

• Junction box features:

• One female 8-pin plug for the switch

• Two 5-pin male plugs for the footrest and headrest motors


Placement:

• Designed for the left-side armrest when facing the chair (right side when sitting).

Compatibility:

• This switch is not universally compatible. It is intended as a direct replacement for the MLSK35-G(LSF) and MLSK35-G(L) models only. If the model number of your switch differs from these, please do not order this product.

• If you need a different model with the same appearance, you can send a picture of the switch model tag to us by email, we will get back to you with a quotation.

Feature:

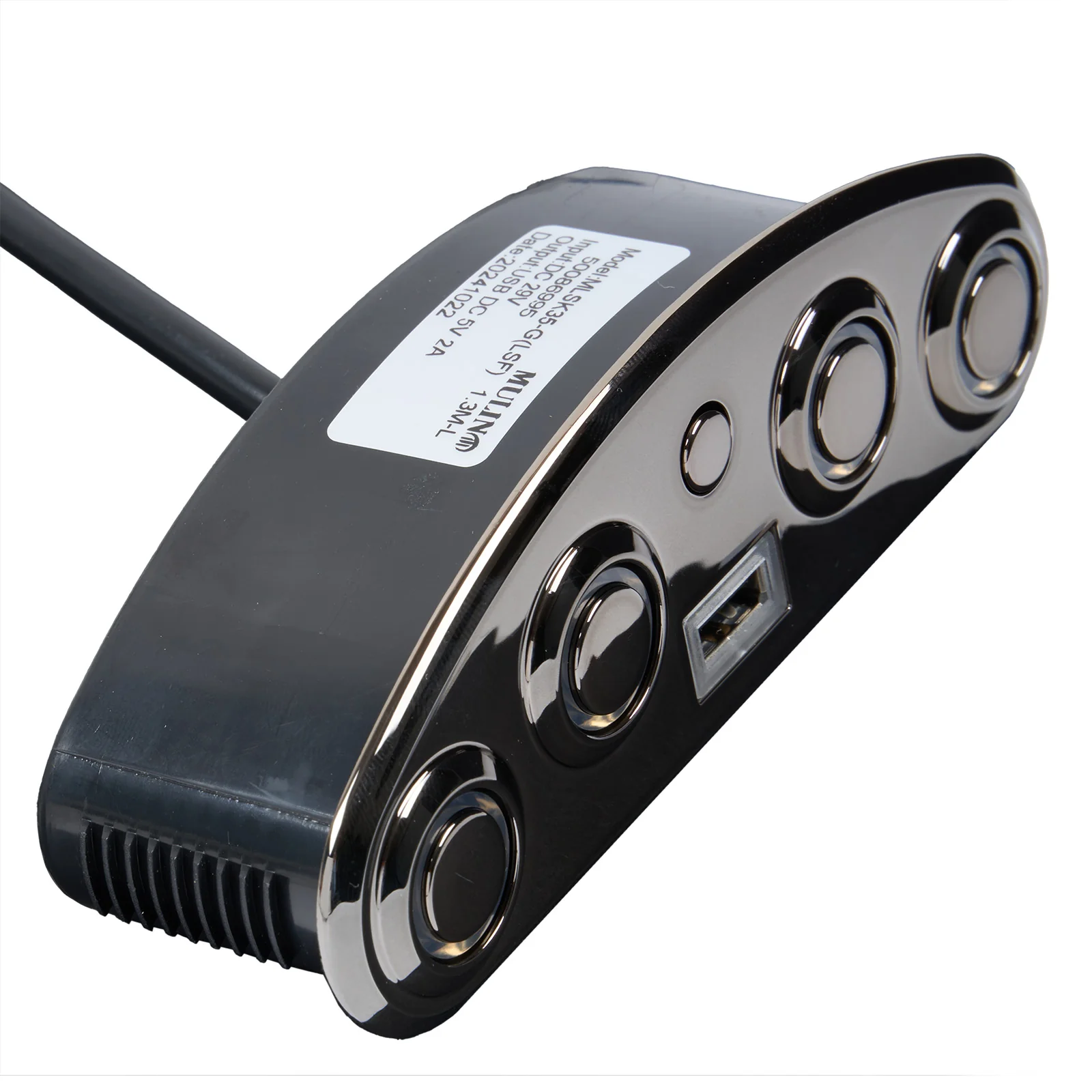

• The switch has five buttons, which are suitable for power recliners or lift chairs with two linear actuator motors.

• Four big round buttons operate the footrest and headrest.

• The small button in center functions as a reset button.

• The switch has a USB port, with a 5V 2A output, ideal for mobile device charging for added convenience.

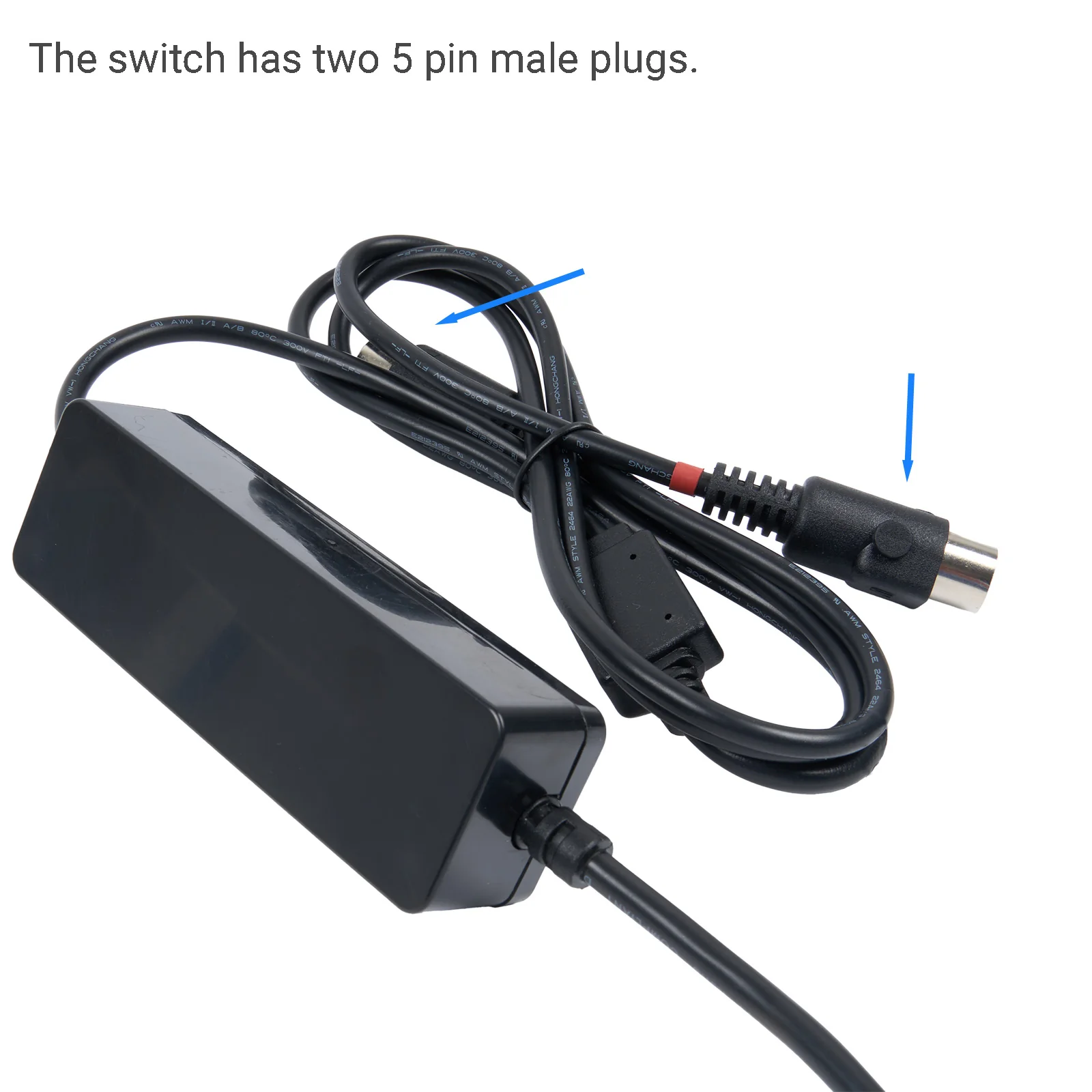

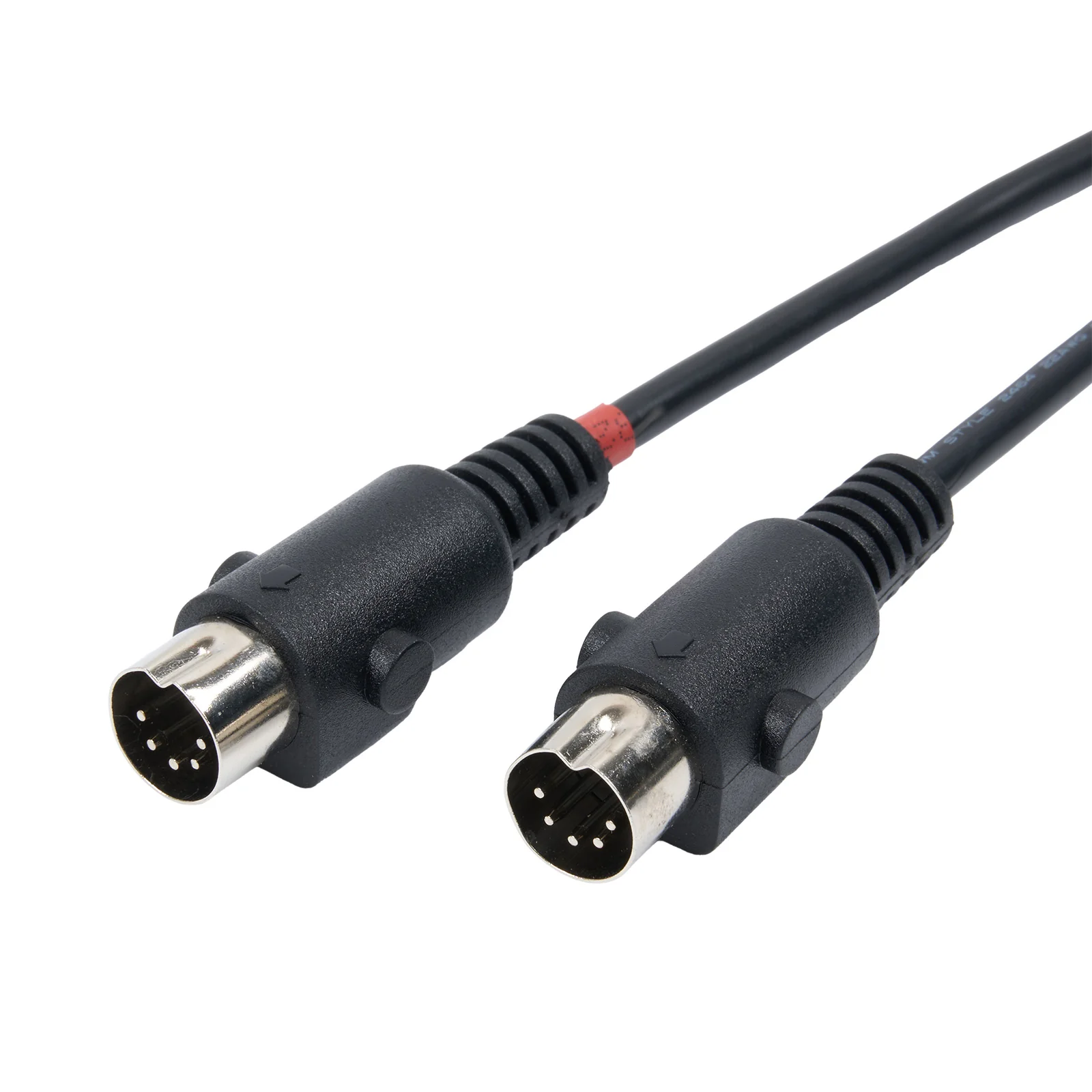

• This switch has two male 5 pin plugs, one connects with the footrest motor, the other one connects with the headrest motor.

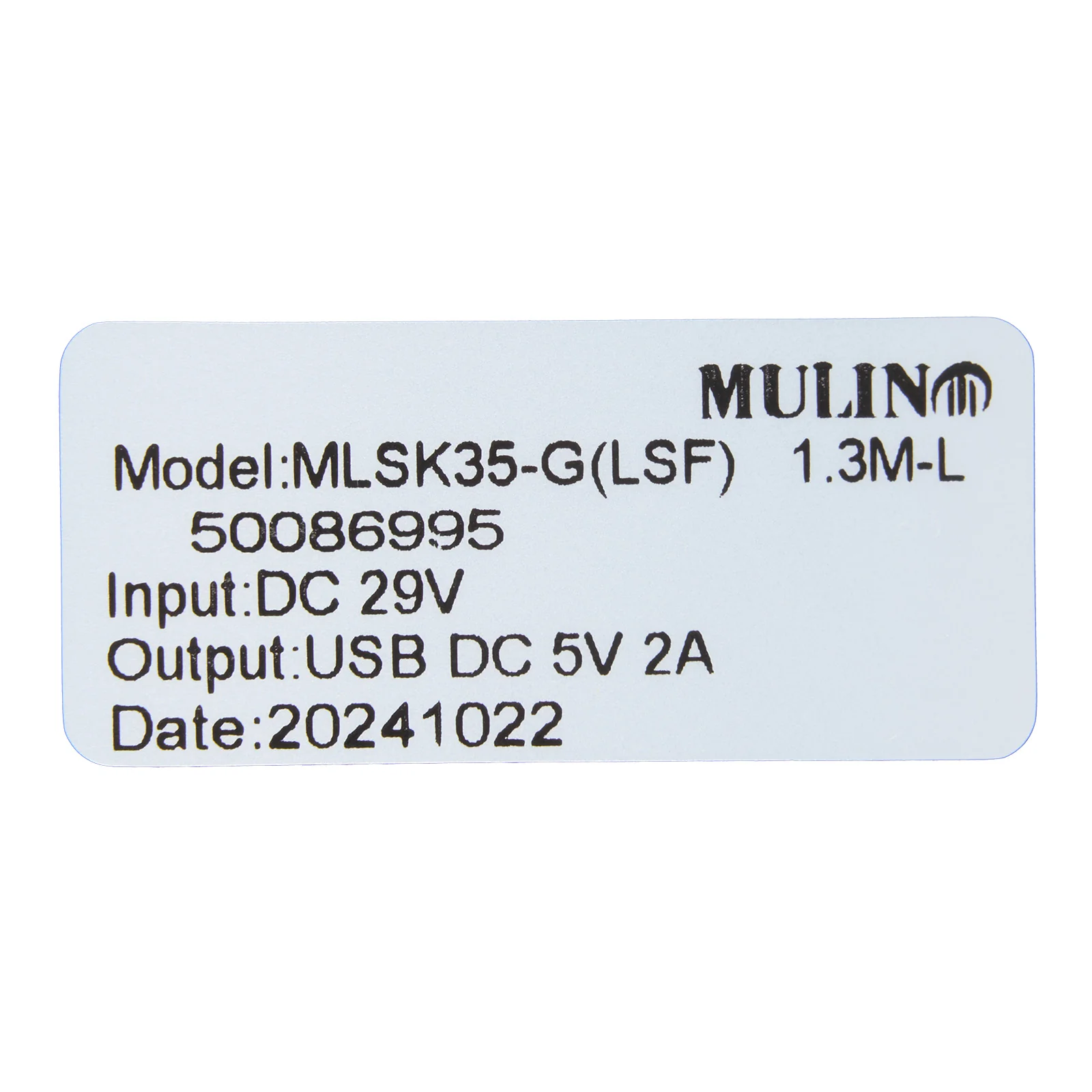

Specification:

• Model: MLSK35-G(LSF)

• Input: DC 29V

• USB Output: DC 5V 2A

Package includes:

• 1 x Switch Body (MLSK35-G(LSF))

• Wire harness connected to the switch which shows in the product picture is included.
