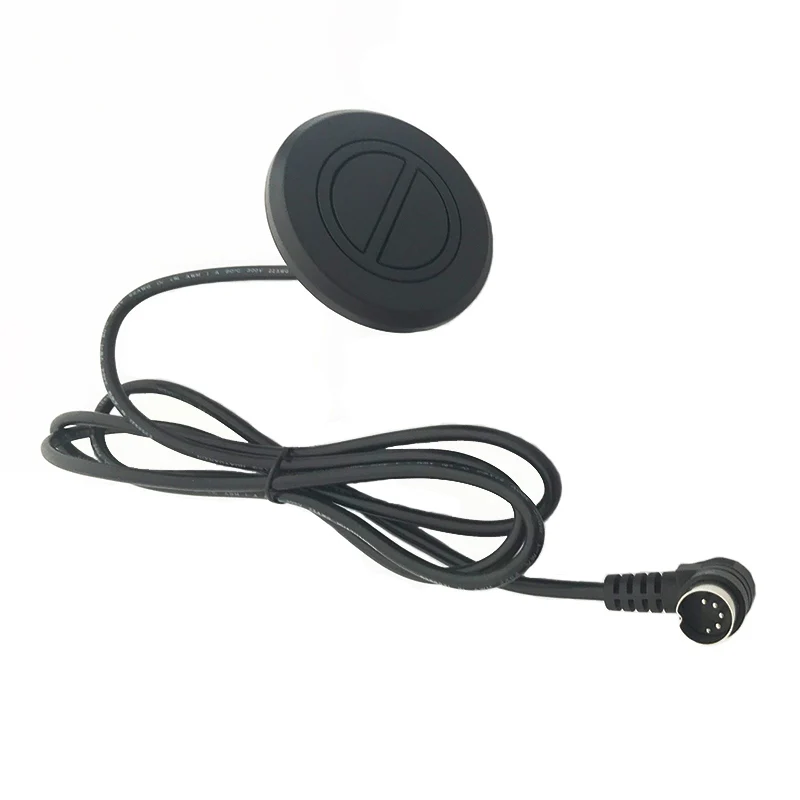

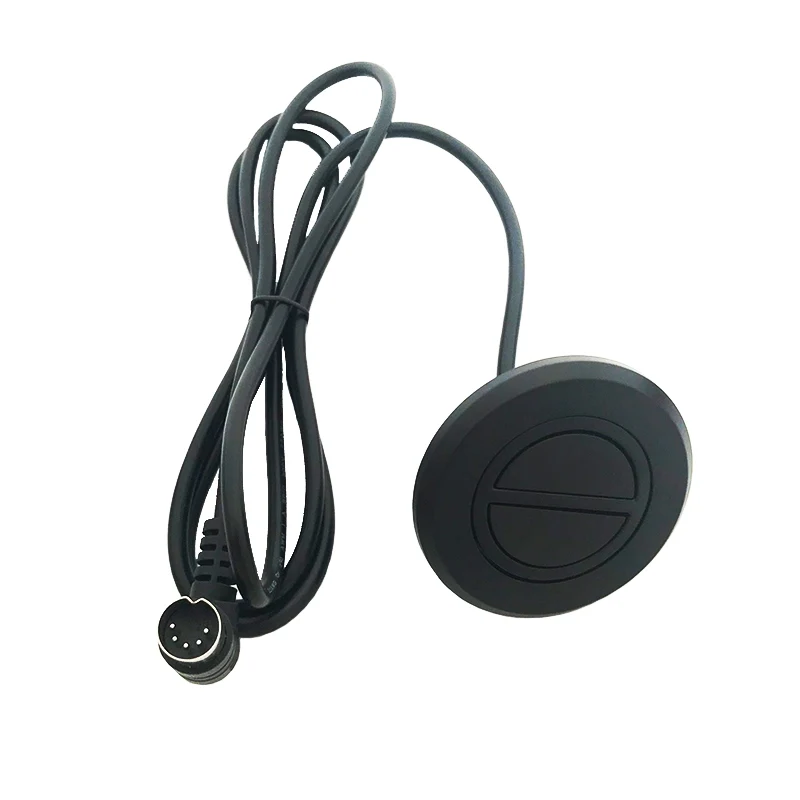

Round 2 Button 5 Pin Switch for Power Lift Recliners

• This round 2 button switch utilizes a 5-pin male plug. It operates the open/close or up/down function, suitable for motion furniture such as power recliners or lift chairs.
• This switch features a basic design and is one of the most widely used 2-button switches in the motion furniture industry.

Features:

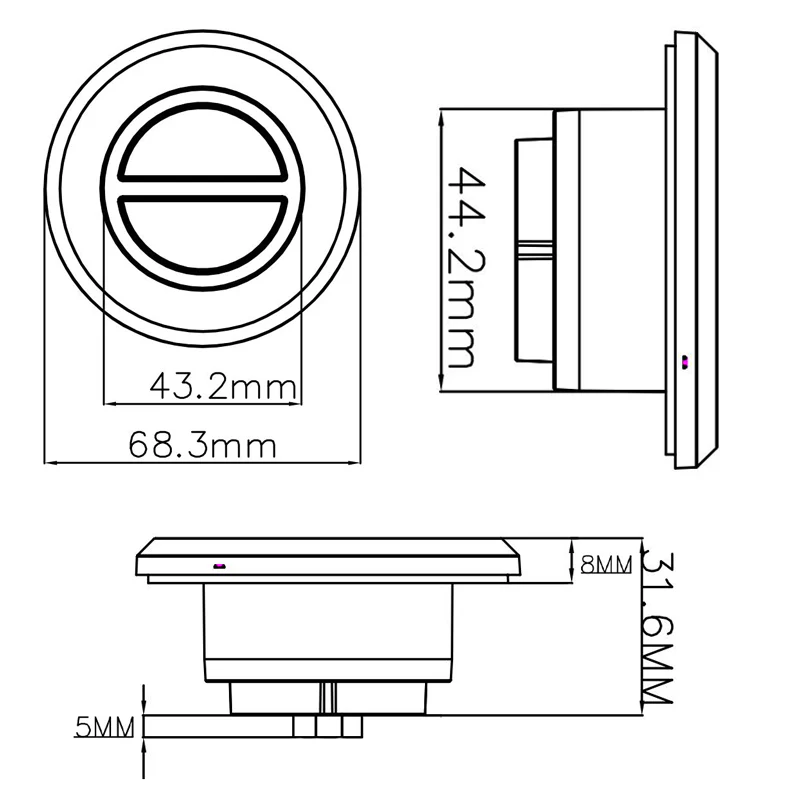

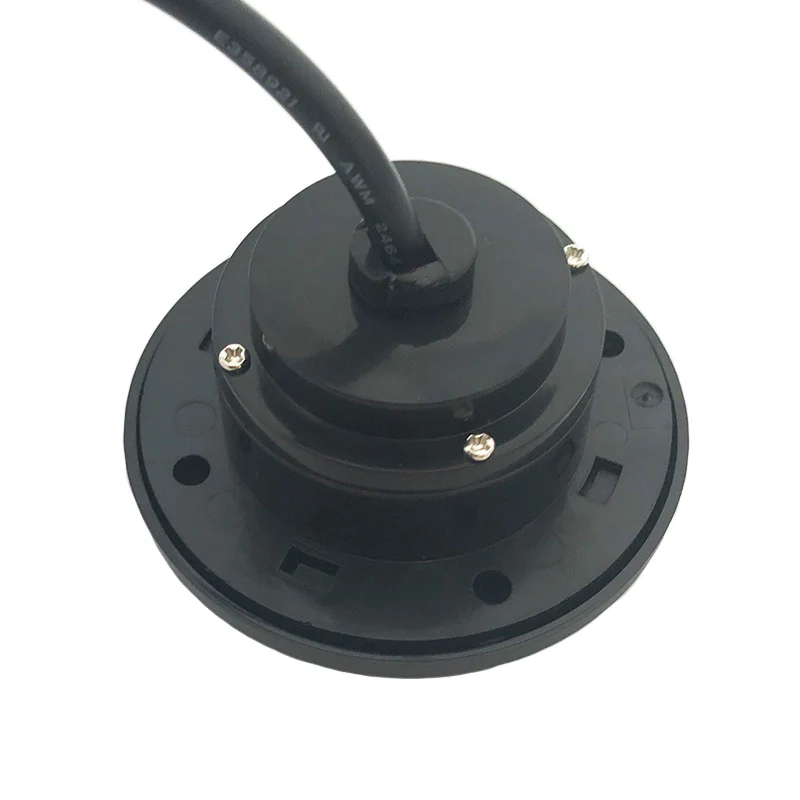

• The switch is secured to the armrest of the chair using 2/4 screws. The center-to-center distance of the screw holes is 53mm (2.09 inches).

• The switch includes a faceplate to conceal the screw holes. The diameter of the faceplate is 68.3mm (2.69 inches).

• The switch features a 1.8m (5.9ft) cable length.


Compatibility:

• This switch offers broad compatibility. If your current switch has the same shape and plug (5-pin male plug, regardless of whether it's straight or right-angled), this switch will seamlessly replace it.
• Important Note: This switch is NOT compatible with:
  • Switches with more than 2 buttons.

  • Switches with plugs other than 5-pin.
