eMoMo HX90TU2 8 Button Switch for Recliner Lift Chair with USB Type C Charger

This is the authentic eMoMo HX90TU2 switch, designed for power recliners or lift chairs equipped with 3 motors.

Important Compatibility Note:

Exact Match Required: This switch is not universally compatible. Please ensure your existing switch has the exact model number HX90TU2 before ordering.

Sub-Models and Configuration:

The HX90TU2 switch comes in two sub-models:

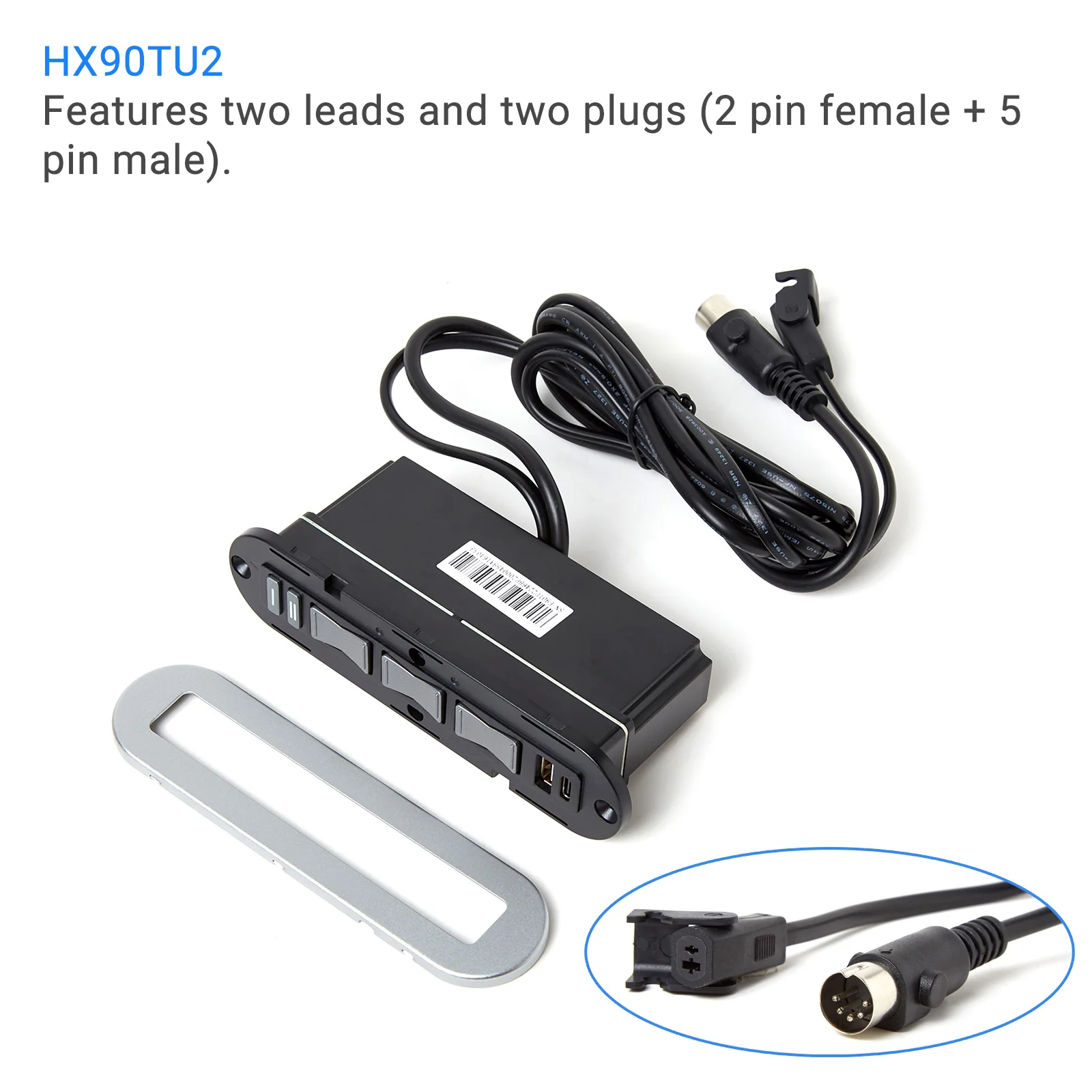

• HX90TU2: Features two leads and two plugs (2 pin female + 5 pin male).

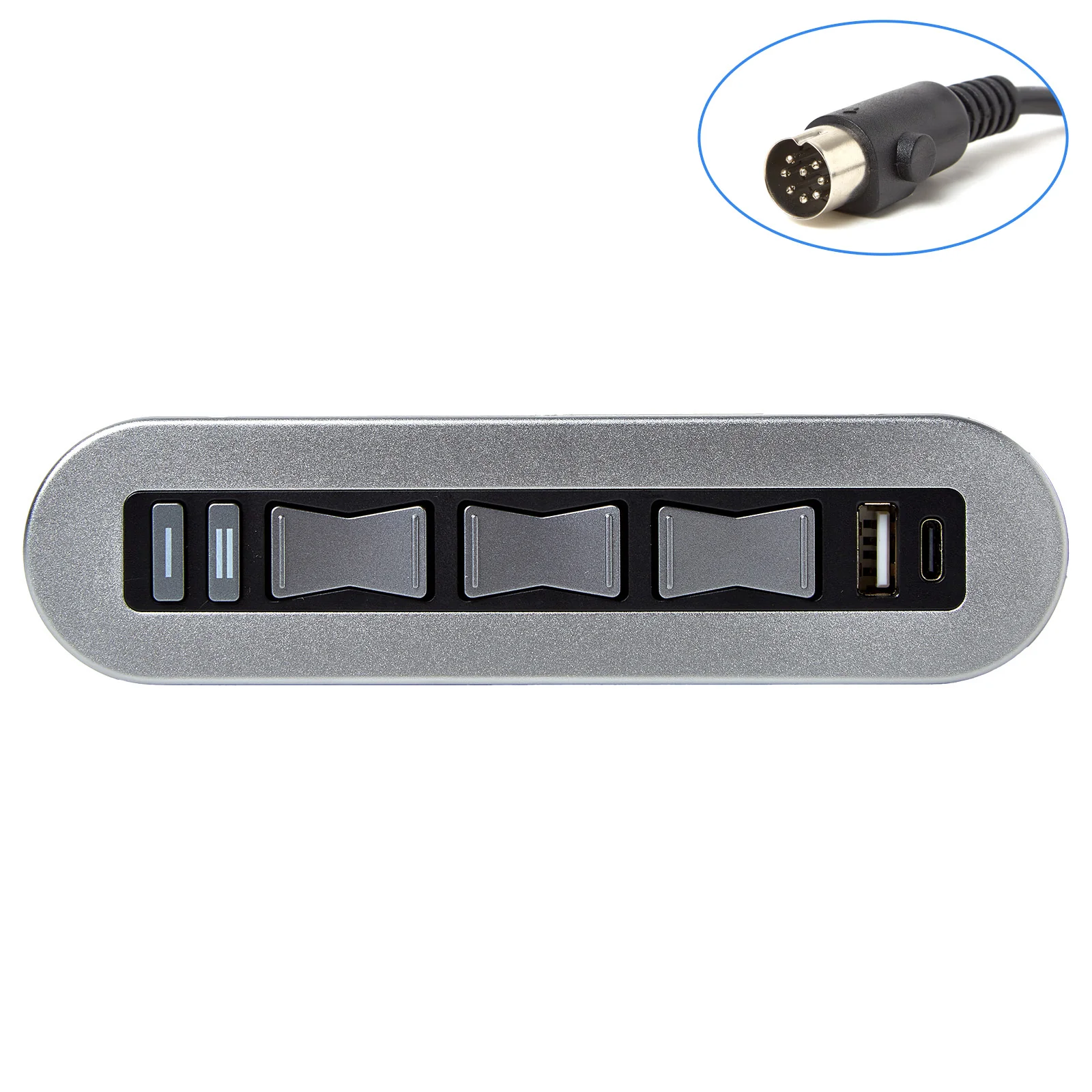

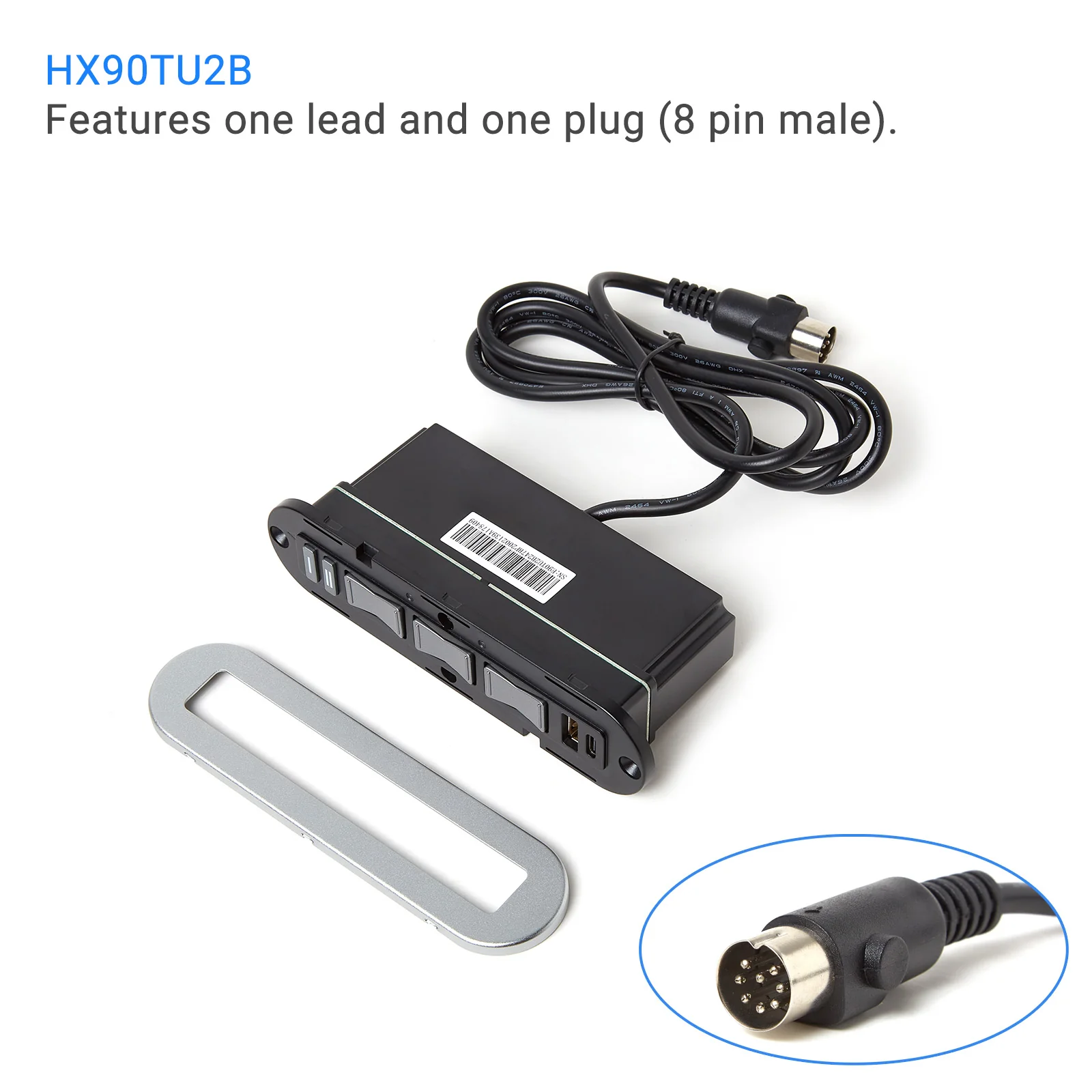

• HX90TU2B: Features one lead and one plug (8 pin male).


To select the correct sub-model:

1. Check the Plug Configuration: Carefully examine your existing switch to determine the number of leads and plugs.

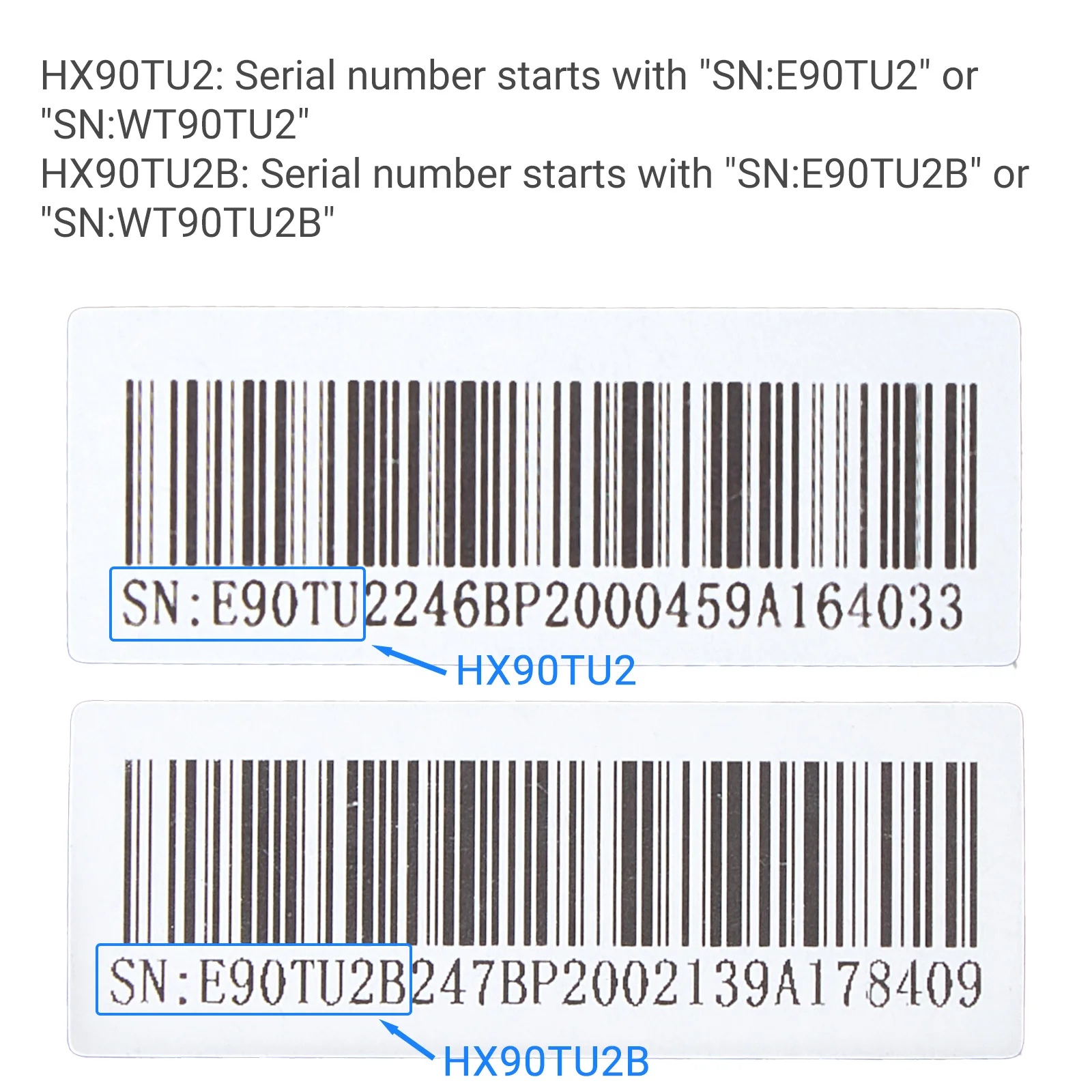

2. Check the Serial Number: If you cannot access the plug configuration, remove the switch from the armrest and check the serial number:

• • HX90TU2: Serial number starts with "SN:E90TU2" or "SN:WT90TU2"

  • HX90TU2B: Serial number starts with "SN:E90TU2B" or "SN:WT90TU2B"


Key Features:

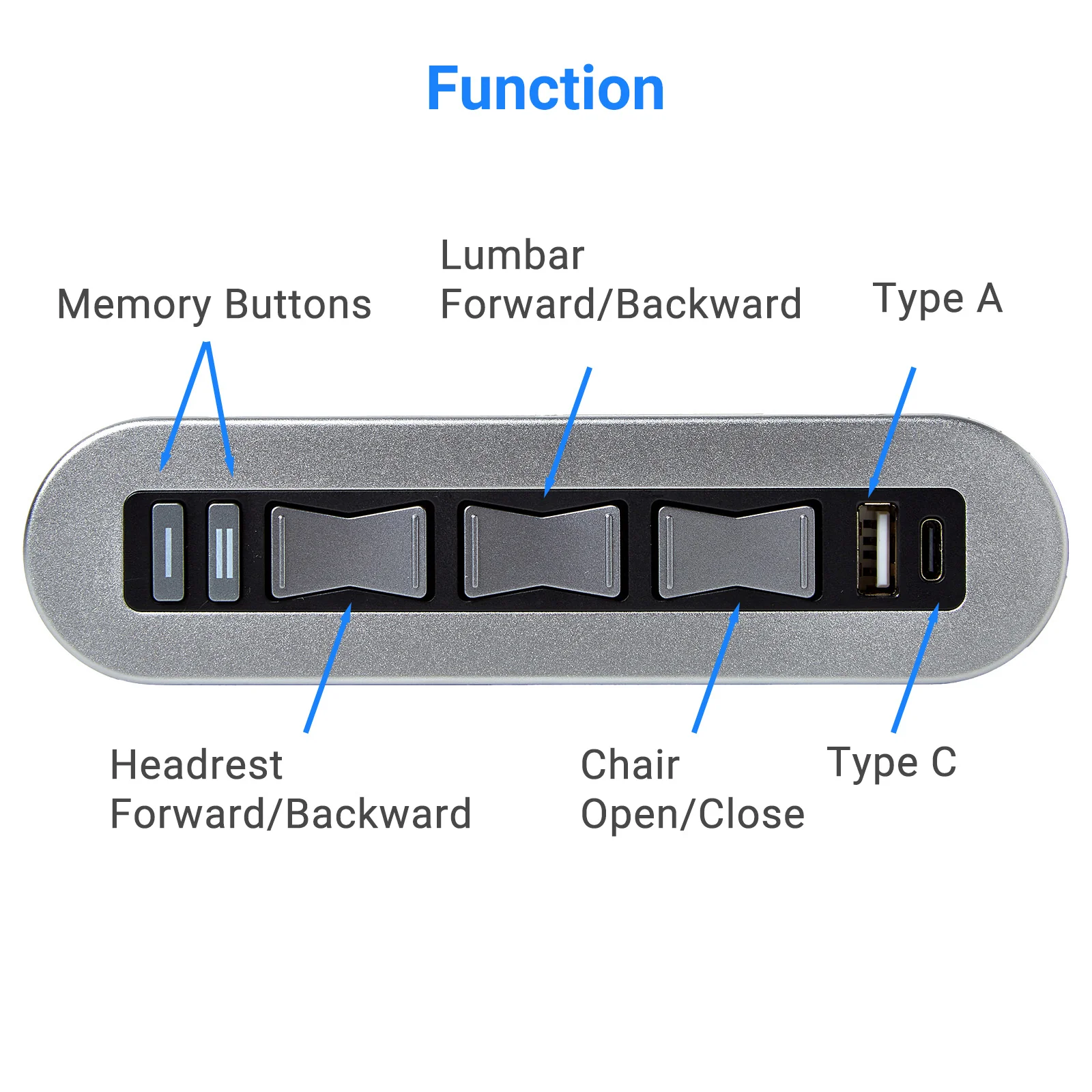

• 8-Button Control: Easily operate headrest, lumbar, and chair functions.

• Memory Function: Save your favorite positions for quick access.

• Dual Charging Port: Conveniently charge your devices with Type-C and USB ports.


Package Includes:

• HX90TU2 or HX90TU2B switch

• 2 Screws

• 1 Face Plate


Note:

• The HX90TU2B sub-model is the most common configuration.


By following these guidelines, you can ensure that you select the correct sub-model for your specific recliner or lift chair.
