KDFSJ-403 Kaidi Linear Actuator for Power Recliner Lift Chairs

Note

The initial KDFSJ-403 has been discontinued, the supplier now uses KDFSJ-403-12 to replace it.

This motor - Kaidi Linear Actuator model KDFSJ-403 is for replacement purpose only, please only order it when your original linear actuator has the exact same model & specification.
We can also help you get other Kaidi Linear Actuators, if this one is not what you need, please take a picture of the linear Actuator's label, and send it to our email ([email protected])

Technical data:

• Model: KDFSJ-403
• Stroke: 205mm/8.07inch
• Max. load: 4000N
• Speed: 8mm/s
• Rated Voltage: DC 29V
• Rated Input: 55W
• Max. Duty Cycle: 2 min ON and 18 min OFF (10%)

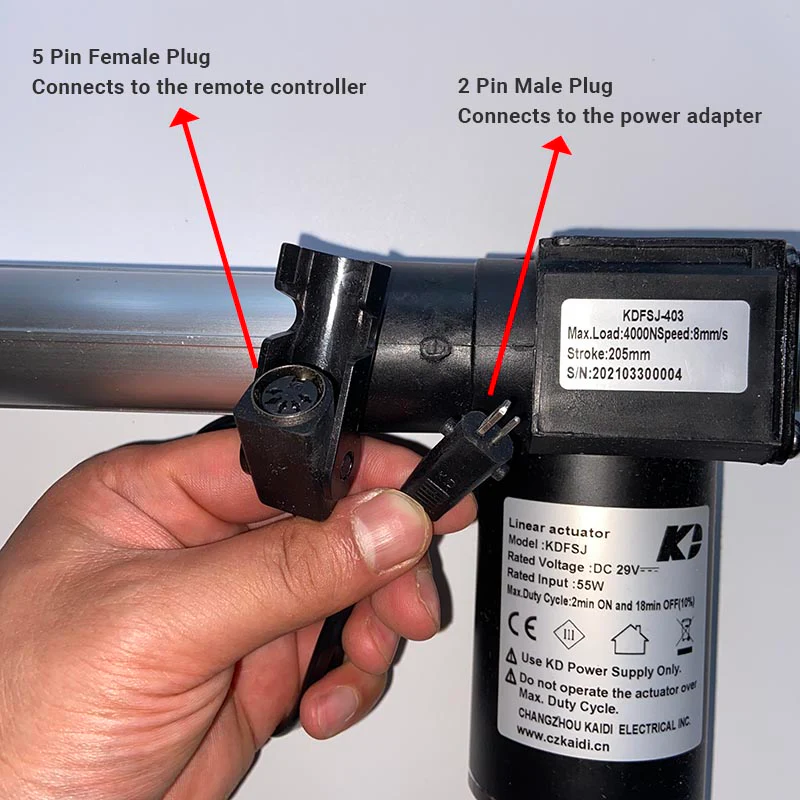

Connection:

• 2 pin flat & round power transformer connection
• 5 pin hand controller plug connection

Package includes:

• 1* Kaidi Linear Actuator (model number KDFSJ-403)
