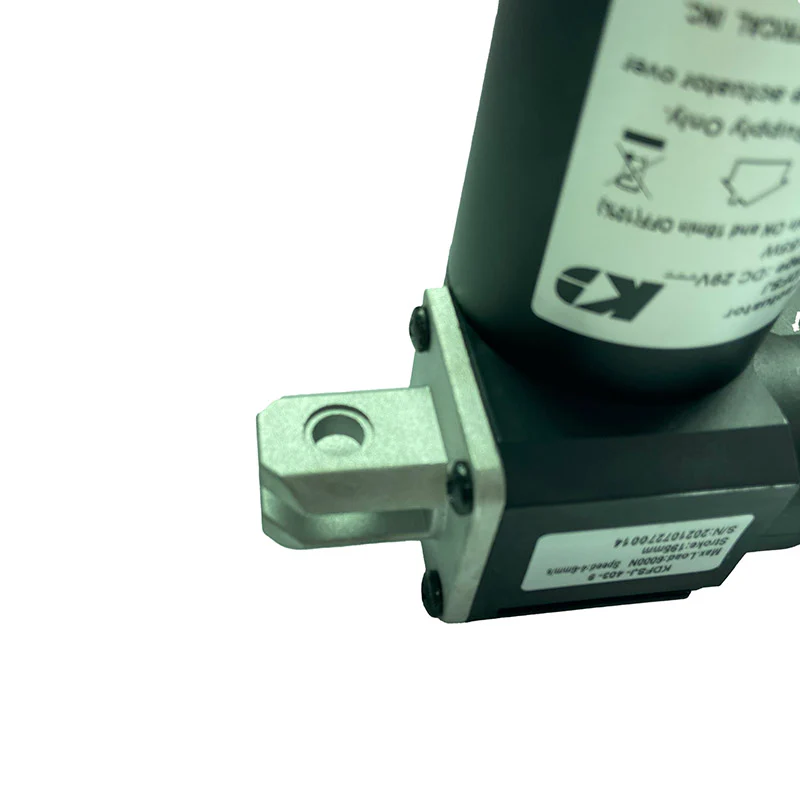

KDFSJ-403-9 Kaidi Linear Actuator for Power Recliner Lift Chair

This is the genuine KDFSJ-403-9 linear actuator.

Compatibility:

• This actuator can only replace the KDFSJ-403-9, if the model of your actuator is different, please avoid order.

• If you are unsure if this actuator fits your chair, please contact us before ordering at [email protected] or call +8613802247190.


Features:

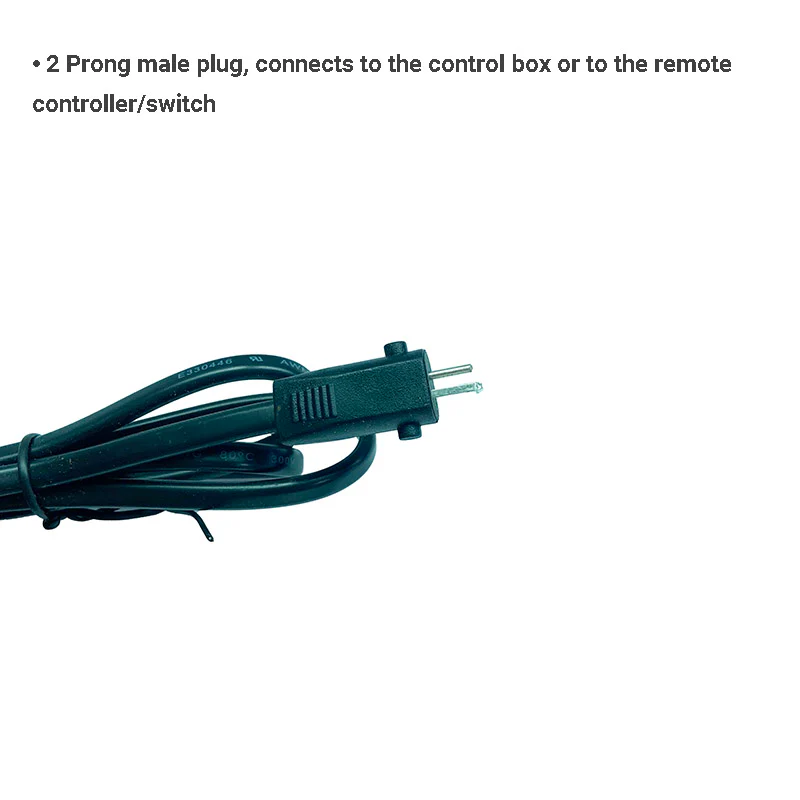

This actuator has one cable and plug: a male two pin plug connects to the main motor or the control box.

Specifications:

• Model: KDFSJ-403-9

• Rated Voltage: DC 29V

• Rated Input: 55W

• Max load: 6000N

• Speed: 4-6mm/s

• Stoke: 195mm

• Duty Cycle: 2min ON, 18min OFF
