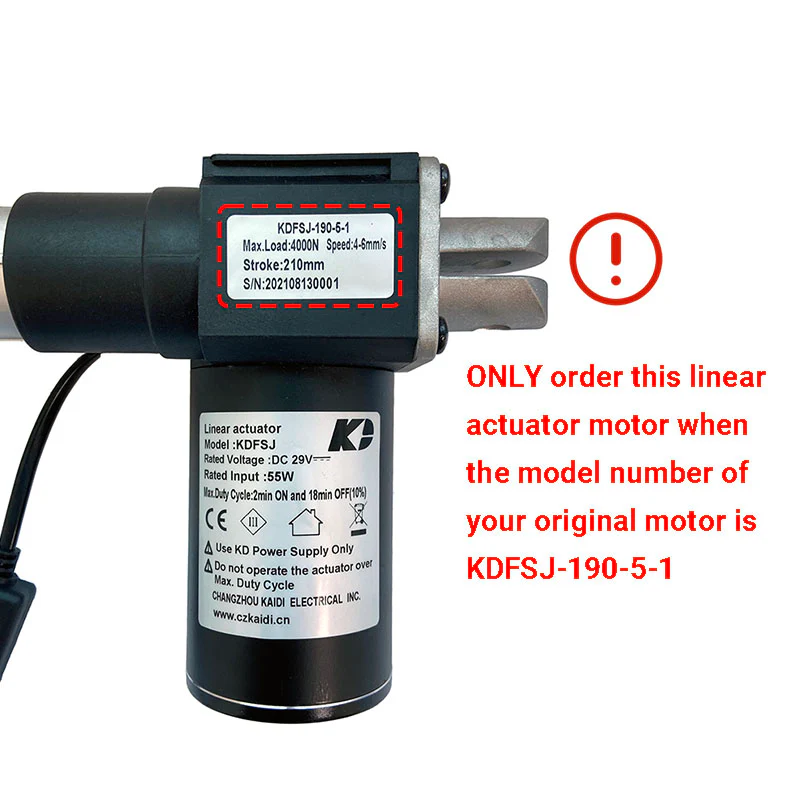

Kaidi KDFSJ-190-5-1 Linear Actuator for Power Recliner Lift Chair

• This is the genuine Kaidi KDFSJ-190-5-1 linear actuator, this linear actuator features a 389mm minimum installation distance and a 210mm stroke (which is one of the most frequently used size for lift chair ).
• The linear actuator has two leads and plugs.

Compatibility:

• This linear actuator is a direct replacement for the KDFSJ-190-5-1 and KDFSJ-190-5.
• This linear actuator can be used as an alternative for linear actuator with the following specifications:
• 389mm or 390mm minimum installation distance
• 210mm stroke
• Two leads & plugs: 2 pin male for power and 5 pin female for remote controller.
• If your linear actuator does not meet the above requirements, please refrain from ordering.

Specifications:

• Model: KDFSJ-190-5-1
• Stroke: 210mm
• Max Load: 4000N
• Speed: 4-6mm/s
• Rated Voltage: DC 29V
• Rated Input: 55W
• Max duty cycle: 2 min ON and 18 min OFF (10%)
