KDFSJ-403-4 Kaidi Linear Actuator for Power Recliner Lift Chair

This is the genuine KDFSJ-403-4 linear actuator.

Compatibility:

• This actuator can only replace the KDFSJ-403-4, if the model of your actuator is different, please avoid order.

• If you are unsure if this actuator fits your chair, please contact us before ordering at [email protected] or call +8613802247190.

Features:

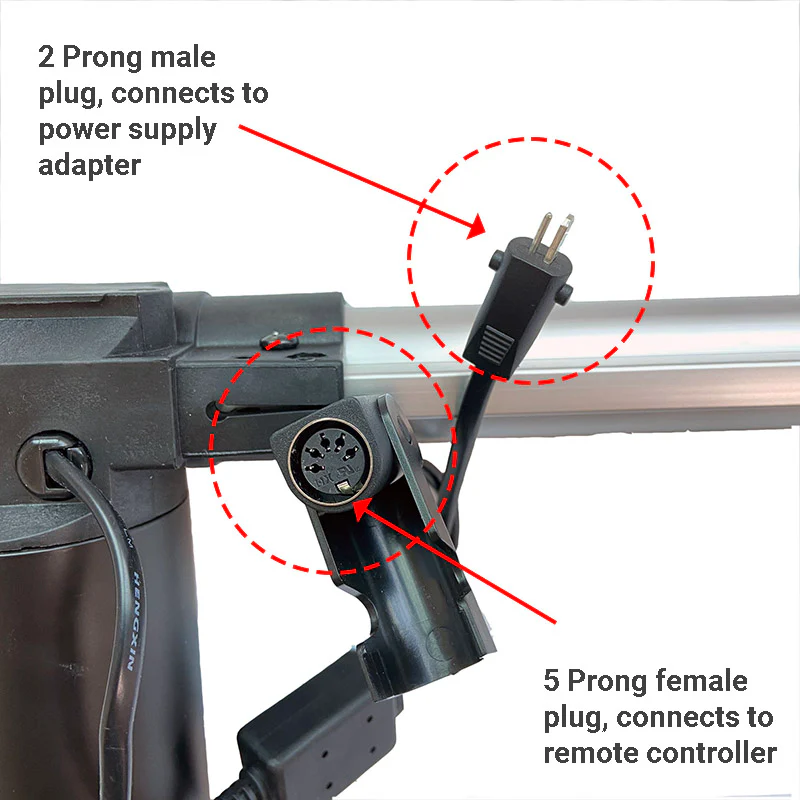

This actuator has two cables and plugs:

• A male 2 pin plug connects to the power adapter.

• A female 5 pin plug connects to the remote controller/switch.

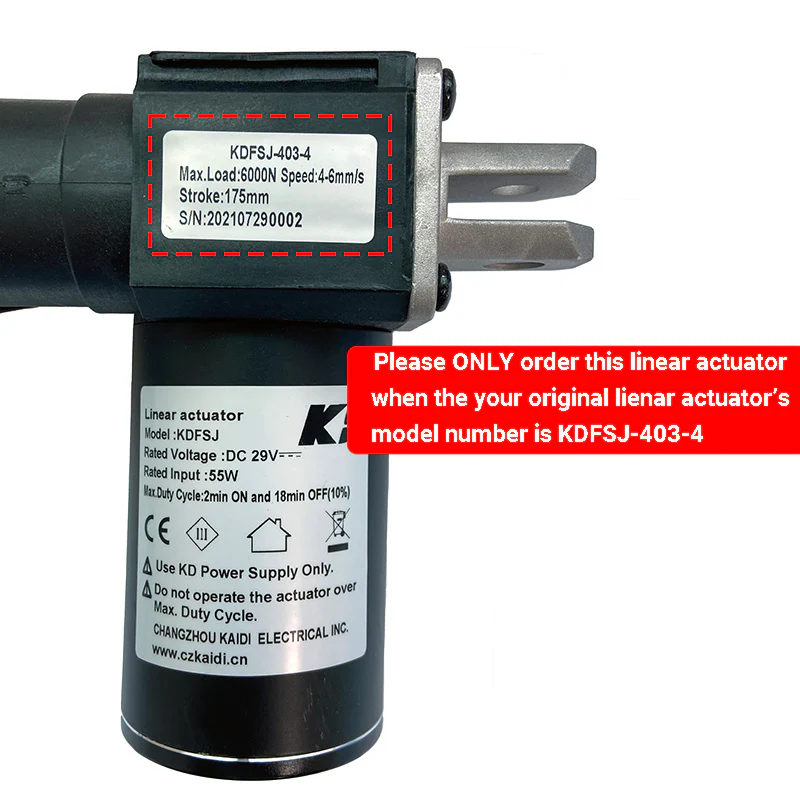

Specifications:

• Model: KDFSJ-403-4

• Rated Voltage: DC 29V

• Rated Input: 55W

• Max load: 6000N

• Speed: 4-6mm/s

• Stoke: 175mm

• Duty Cycle: 2min ON, 18min OFF
