OKIN RF075D RF Lite Wireless Remote Controller + Receiver Control Box Kit for Adjustable Bed

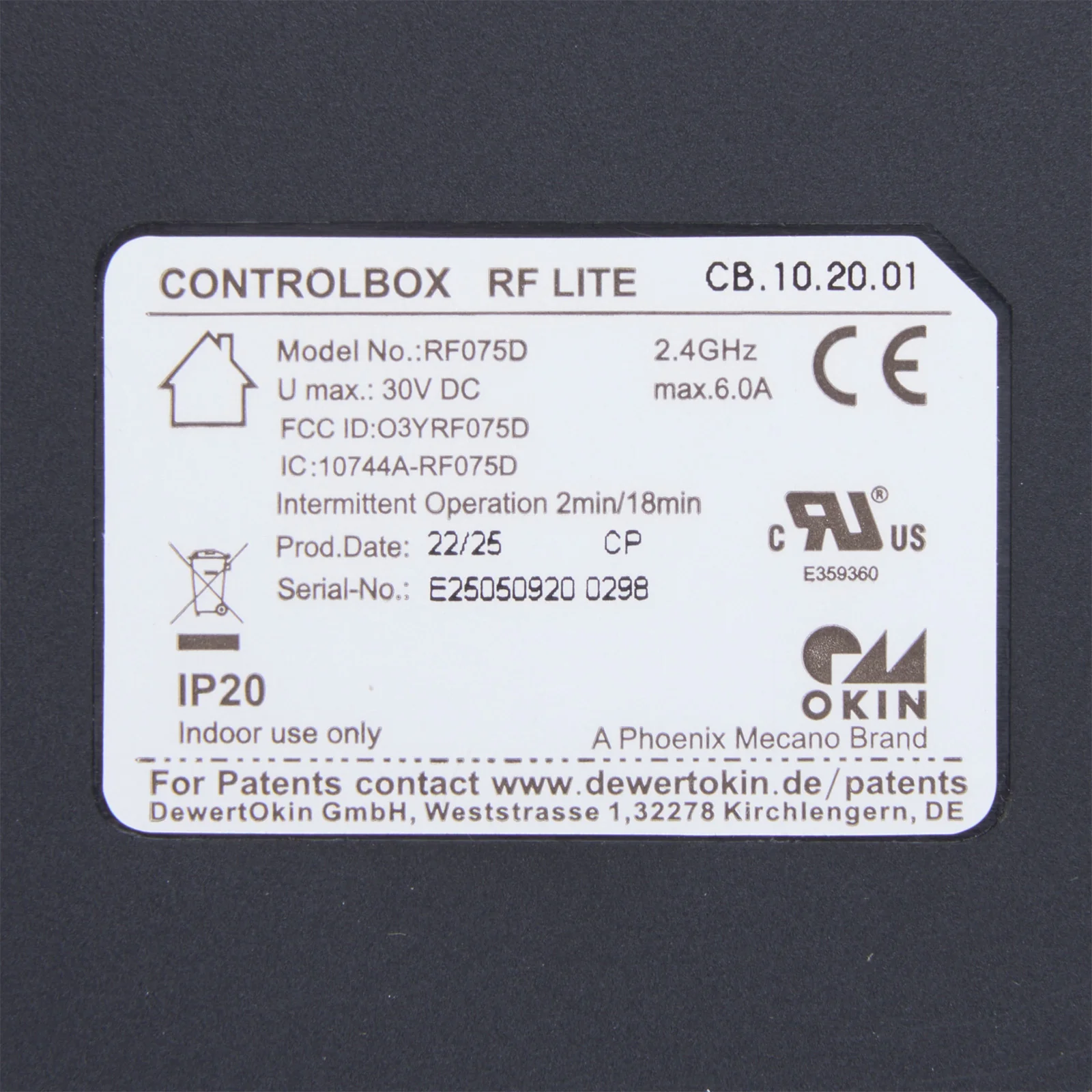

This is a genuine OKIN RF075D RF Lite wireless remote control kit. It includes one 6-button wireless remote controller (Model: RF.23.06.02) and one receiver control box (Model: CB.10.20.01). The kit is designed for adjustable bed bases utilizing the OKIMAT dual motor actuator.

Compatibility:

• This kit directly replaces the RF075D RF Lite and RF ECO wireless remote controller and receiver kits.
• For guaranteed pairing success, it is recommended to replace both the remote and receiver as a complete set.

Features:

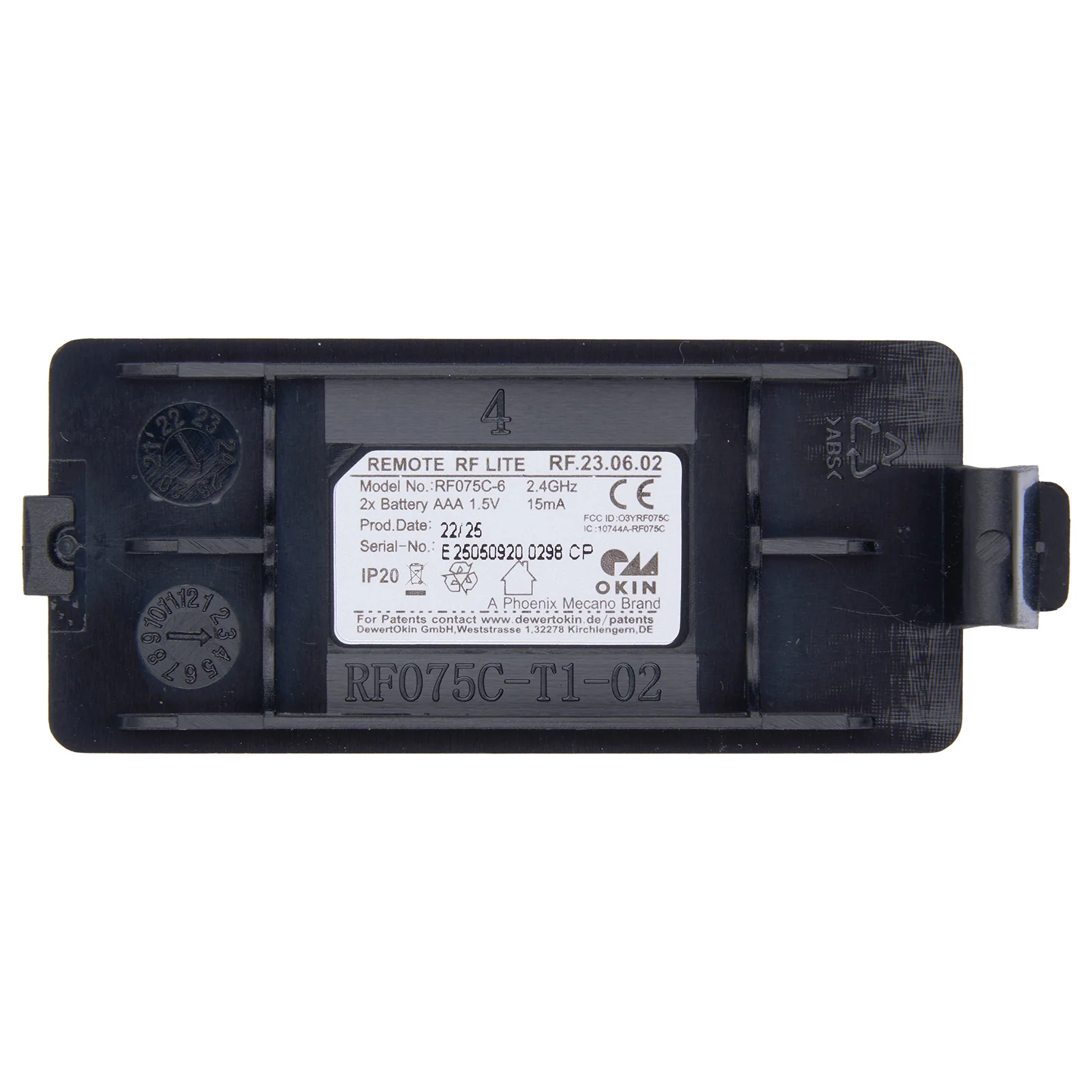

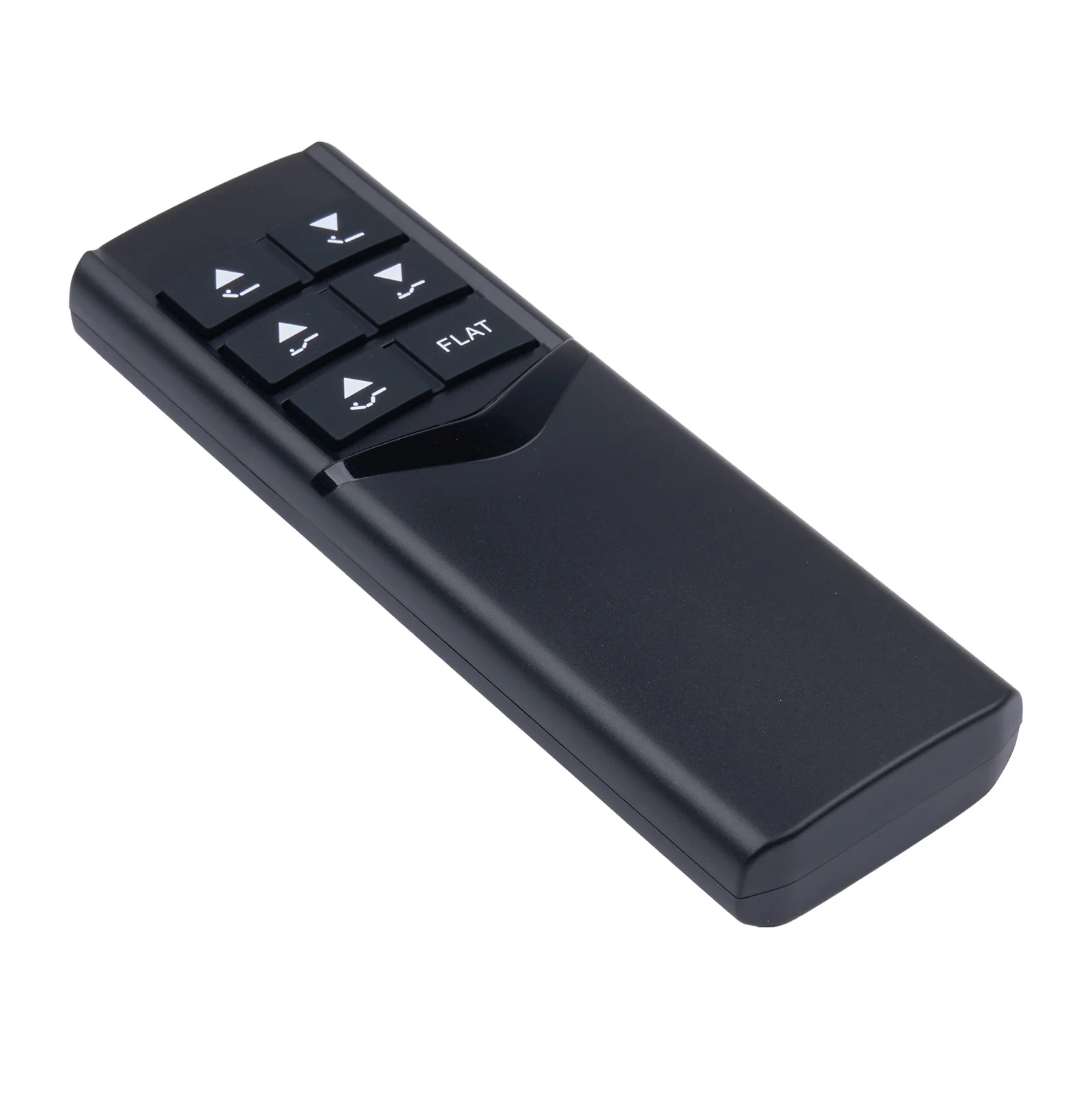

• Remote Controller (6-Button):
  • Buttons #1 & #2: Independently control backrest elevation and lowering.
  • Buttons #3 & #4: Independently control leg rest elevation and lowering.
  • Button #5: Raises the backrest and leg rest simultaneously.
  • Button #6: Lowers the backrest and leg rest simultaneously.
  • Buttons #1+#2 (Simultaneous Press): Toggles the under-bed floor light ON/OFF.
  • Buttons #3+#4 (Simultaneous Press): Toggles the RF power outlet ON/OFF.

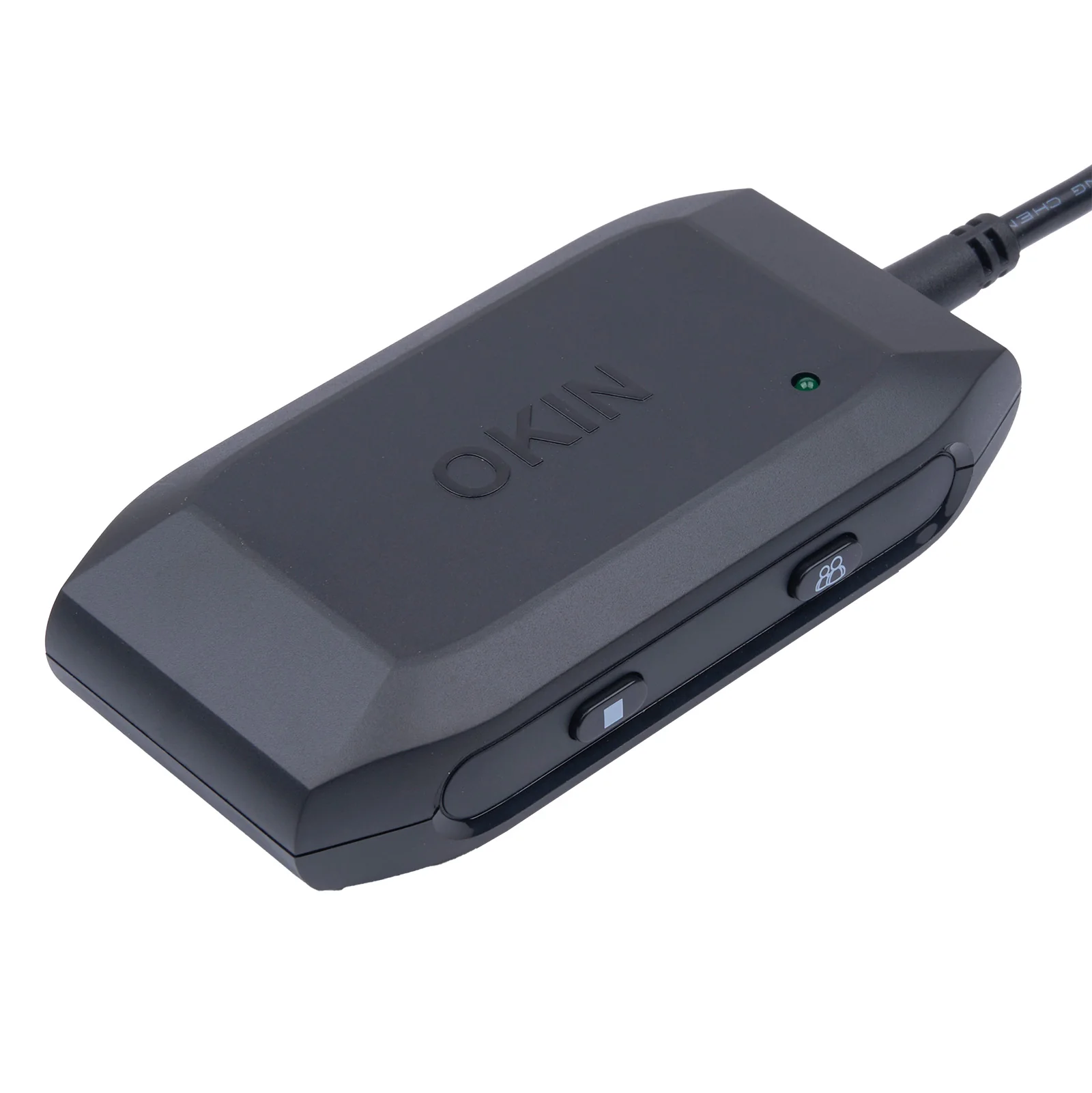

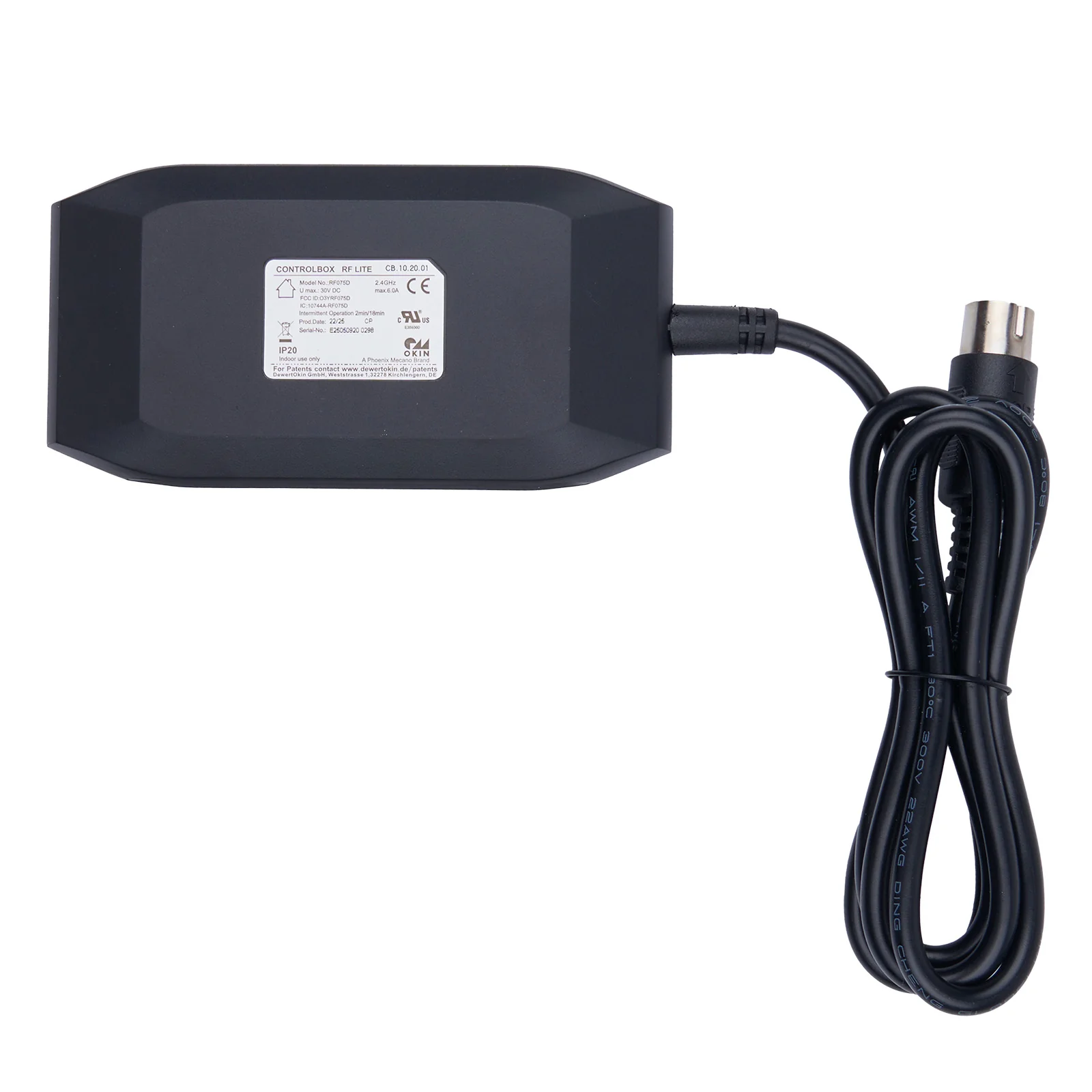

• Receiver Control Box:
  • Features two buttons: one for emergency lowering and one for pairing.

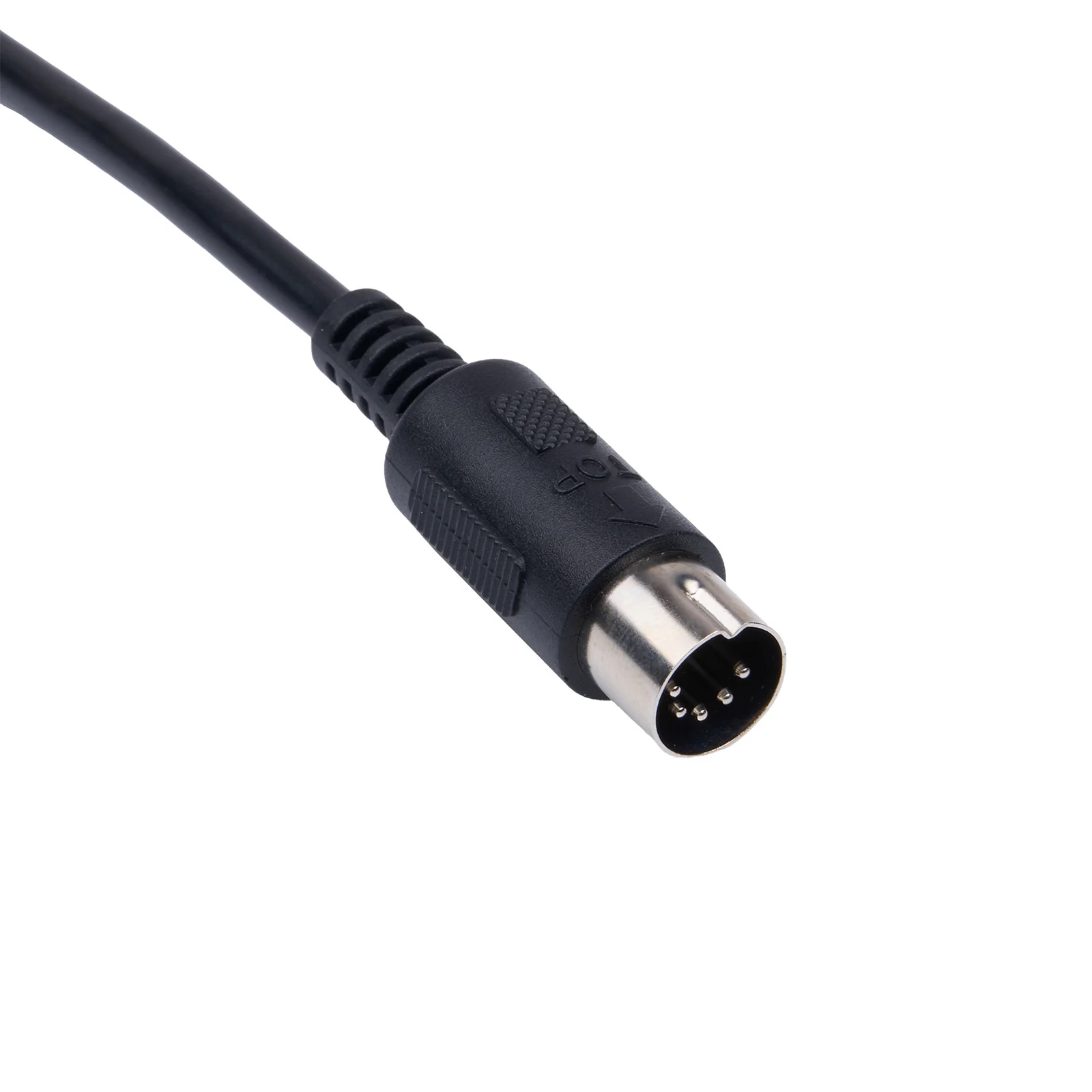

  • Equipped with a standard male 5-pin plug for direct connection to the OKIMAT motor.
• The included remote can be paired with up to two receivers, enabling the simultaneous control of two separate adjustable beds.

Pairing Instructions:

• Connect the RF receiver to the OKIMAT motor and power on the adjustable bed.
• Press the pairing button on the receiver twice. The LED indicator will illuminate, initiating a 20-second pairing window.
• To pair the first receiver, press and hold Buttons #1 and #2 on the remote simultaneously until the receiver's LED begins to blink, confirming a successful pairing.
• To pair a second receiver, repeat steps 1 and 2, then press and hold Buttons #3 and #4 on the remote simultaneously during the pairing window.
