KAIDI KDYJT014-024 ELM0241C1 Linear Actuator for Adjustable Bed Bases

This is the genuine KAIDI KDYJT014-024 linear actuator, manufacturer number ELM0241C1.

Compatibility:

• This actuator can only replace the KDYJT014-024, if the model of your actuator is different, please avoid order.

• If you are unsure if this actuator fits your chair, please contact us before ordering at [email protected] or call +8613802247190.


Features:

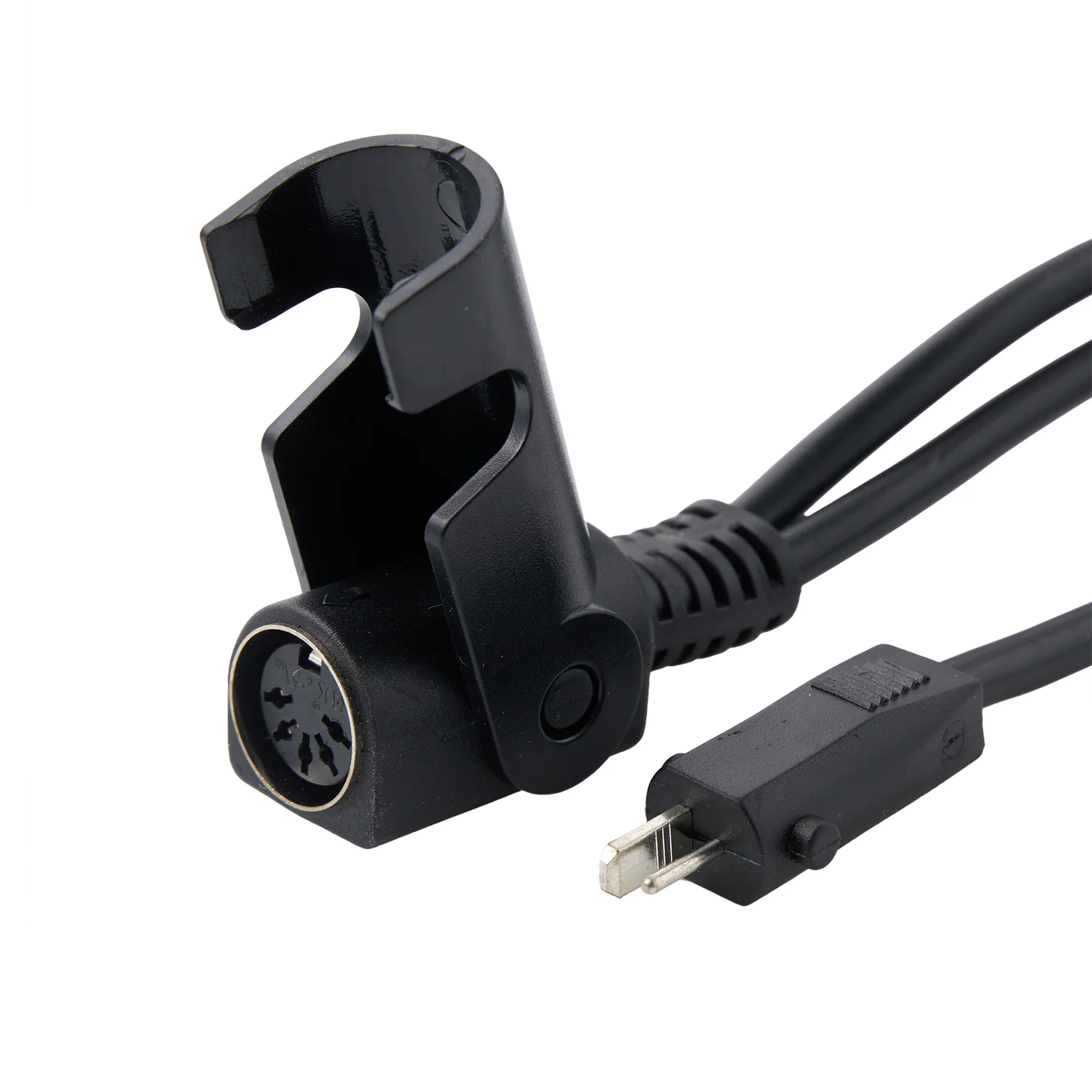

This actuator has two cables and plugs:

• A male 2 pin plug connects to the power adapter.

• A female 5 pin plug connects to the remote controller/switch.

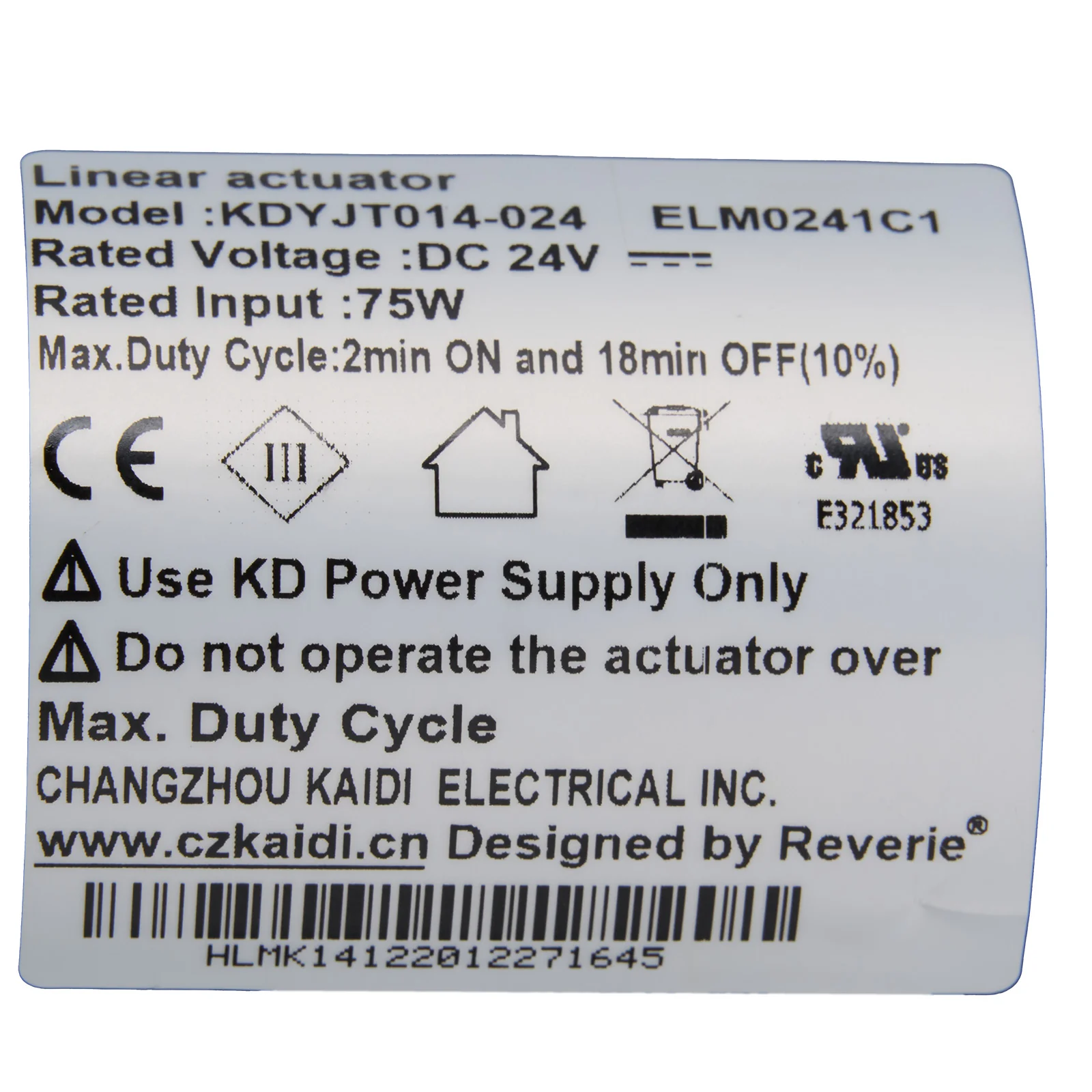

Specifications:

• Model: KDYJT014-024

• Rated Voltage: DC 24V

• Rated Input: 75W

• Retracted Length: 330mm

• Max Load: 6000N

• Speed: 4~6mm/s

• Stoke: 100mm

• Duty Cycle: 2min ON, 18min OFF
