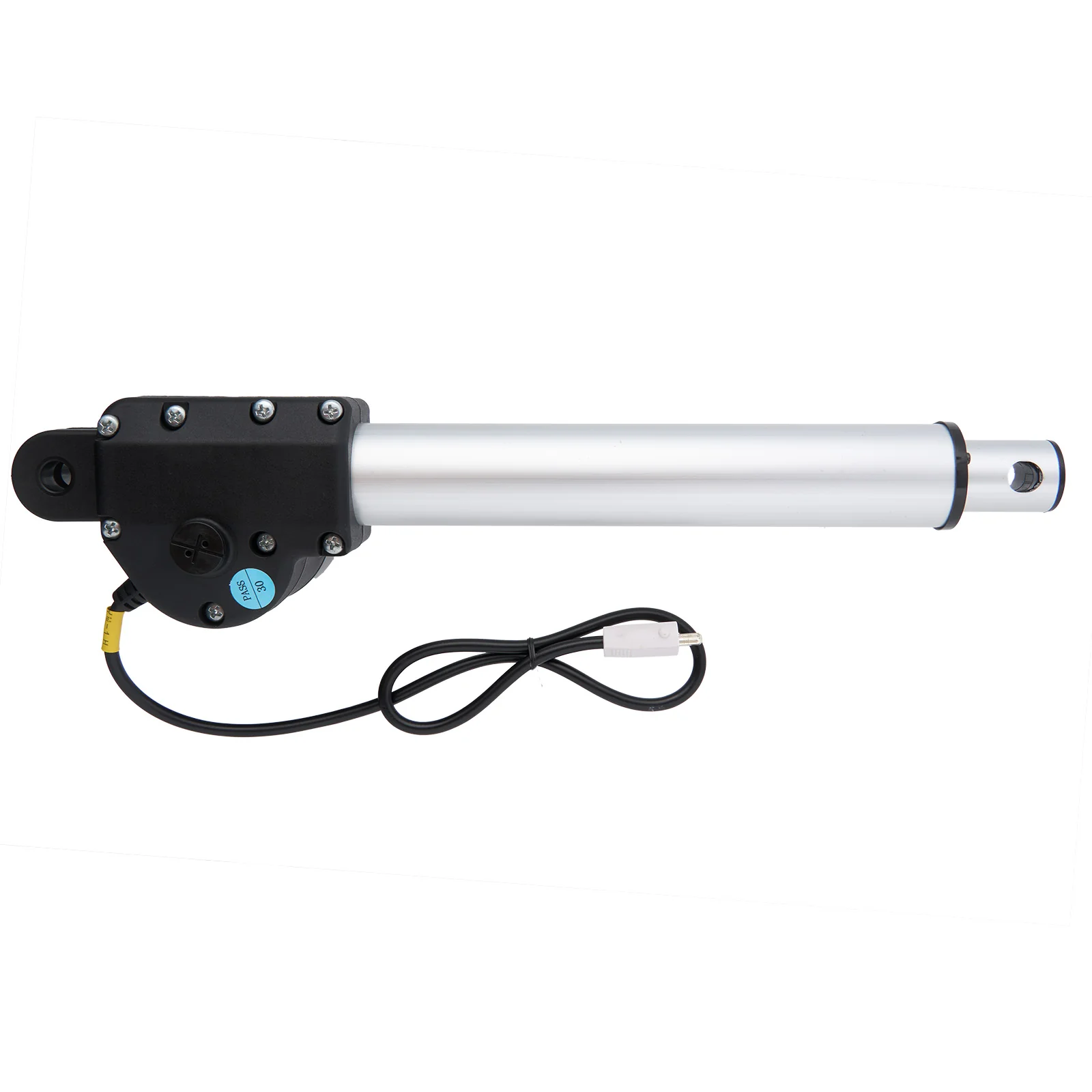

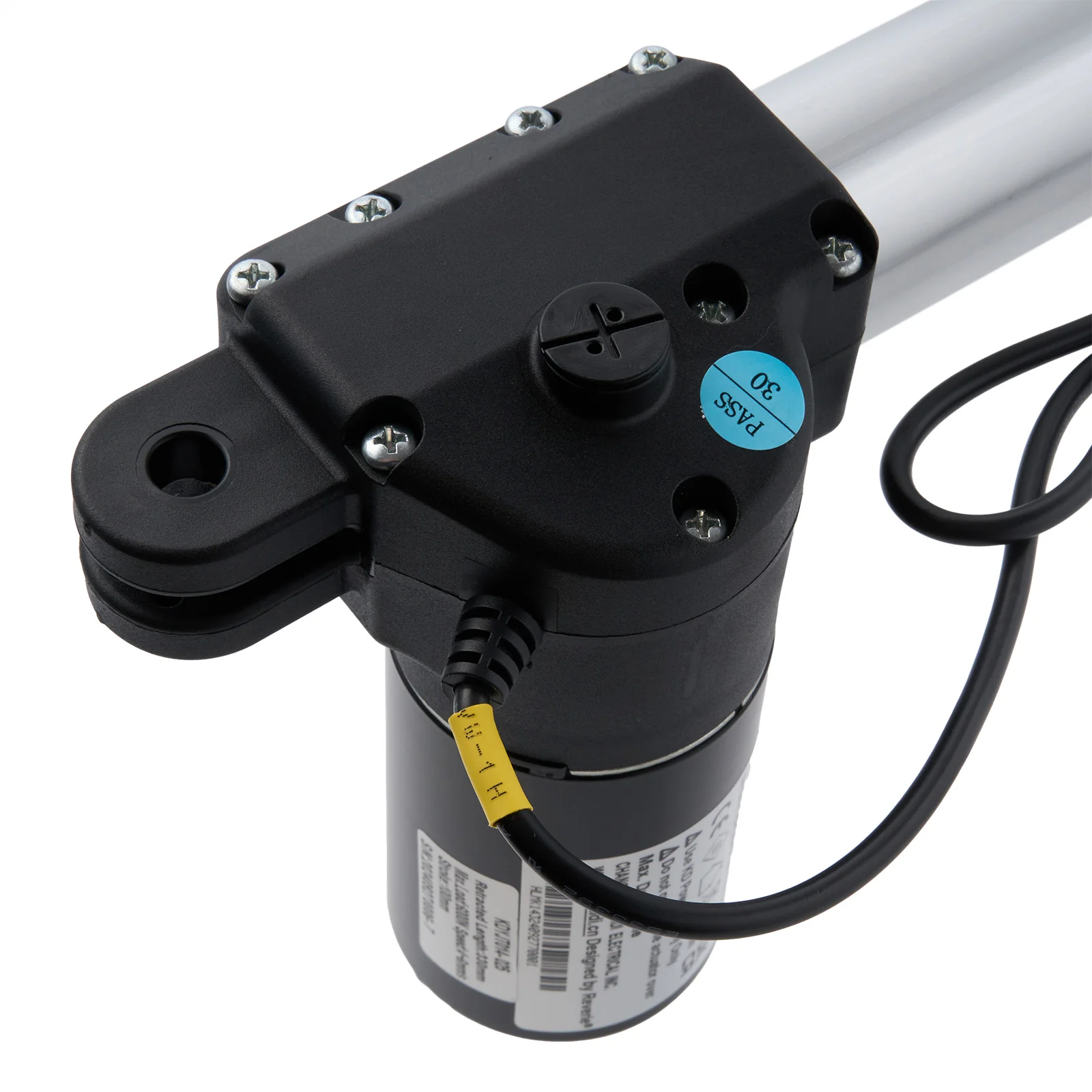

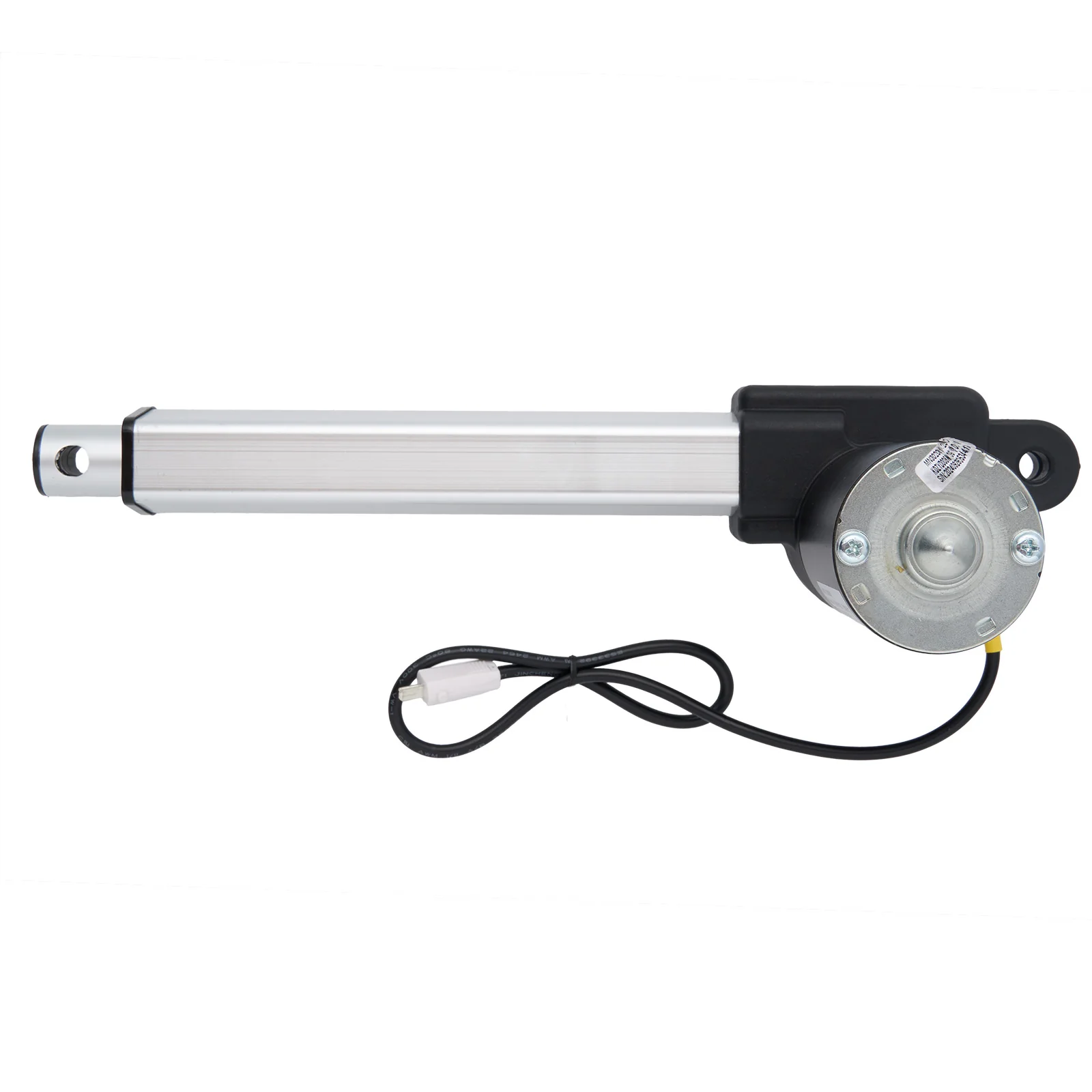

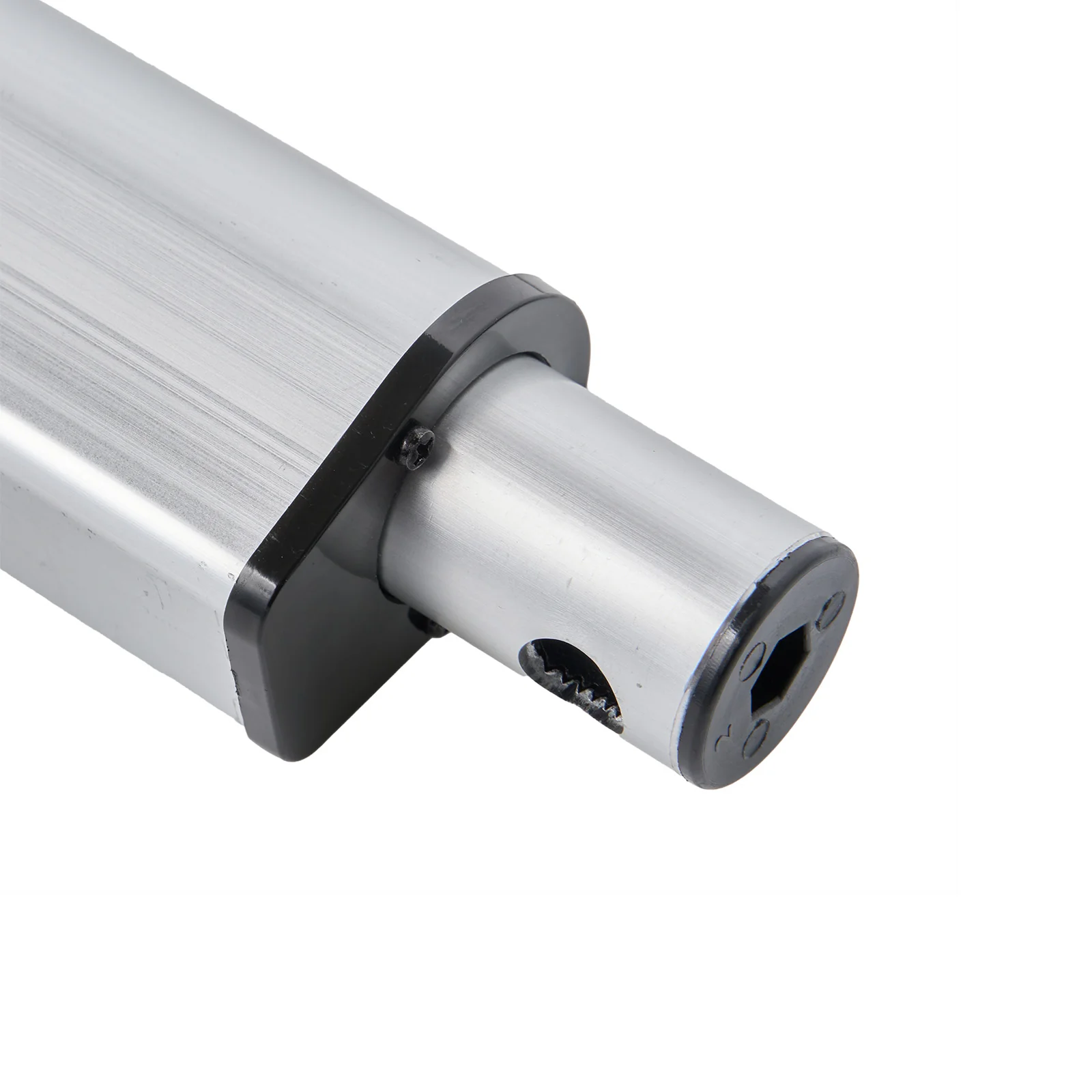

KAIDI KDYJT014-025 ELM0251C2 Linear Actuator for Adjustable Bed Bases

This is the genuine KAIDI KDYJT014-025 linear actuator, manufacturer number ELM0251C2.

Compatibility:

• This actuator can only replace the KDYJT014-025, if the model of your actuator is different, please avoid order.

• If you are unsure if this actuator fits your chair, please contact us before ordering at [email protected] or call +8613802247190.


Features:

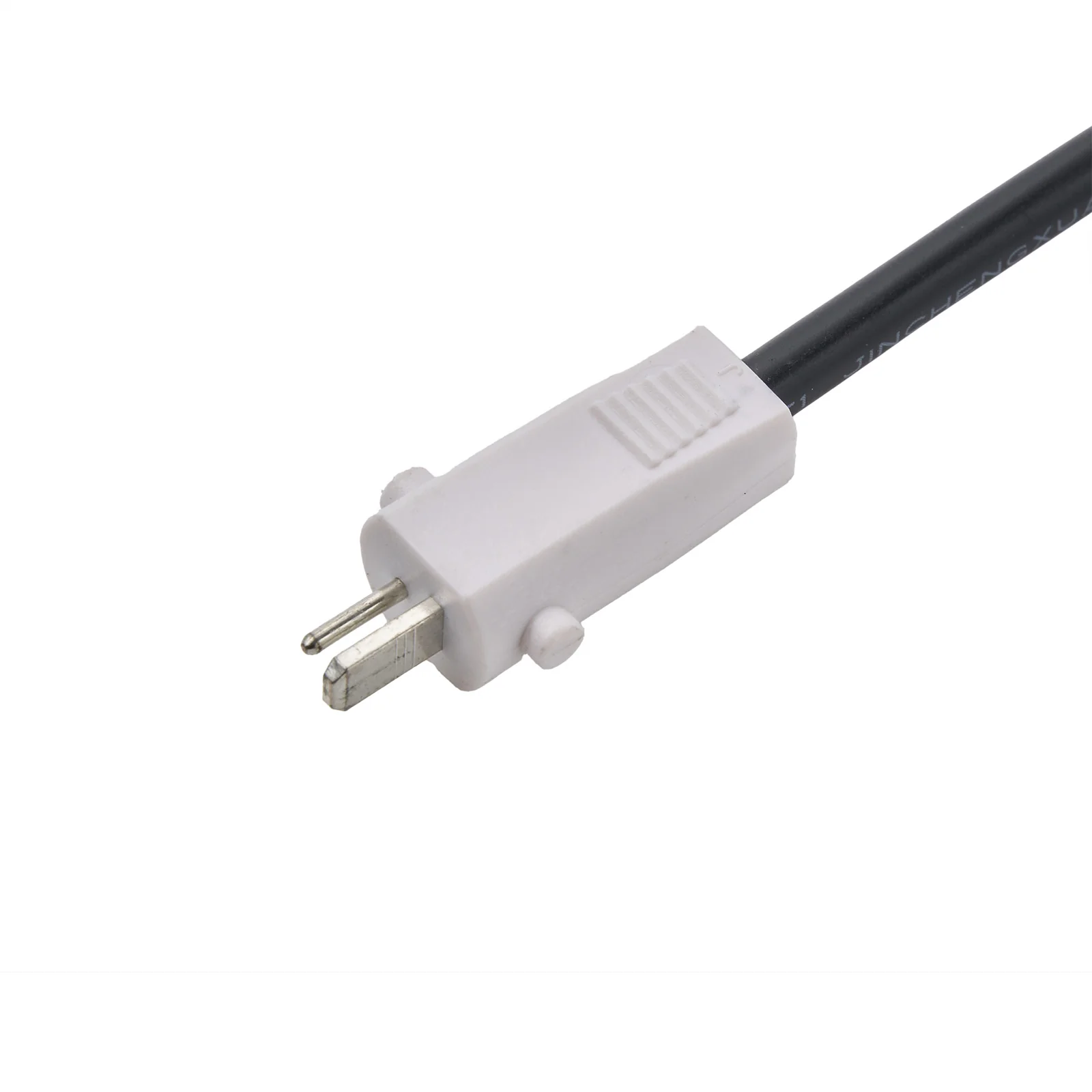

This actuator has one cable and plug: a male two pin plug connects to the main motor or the control box.

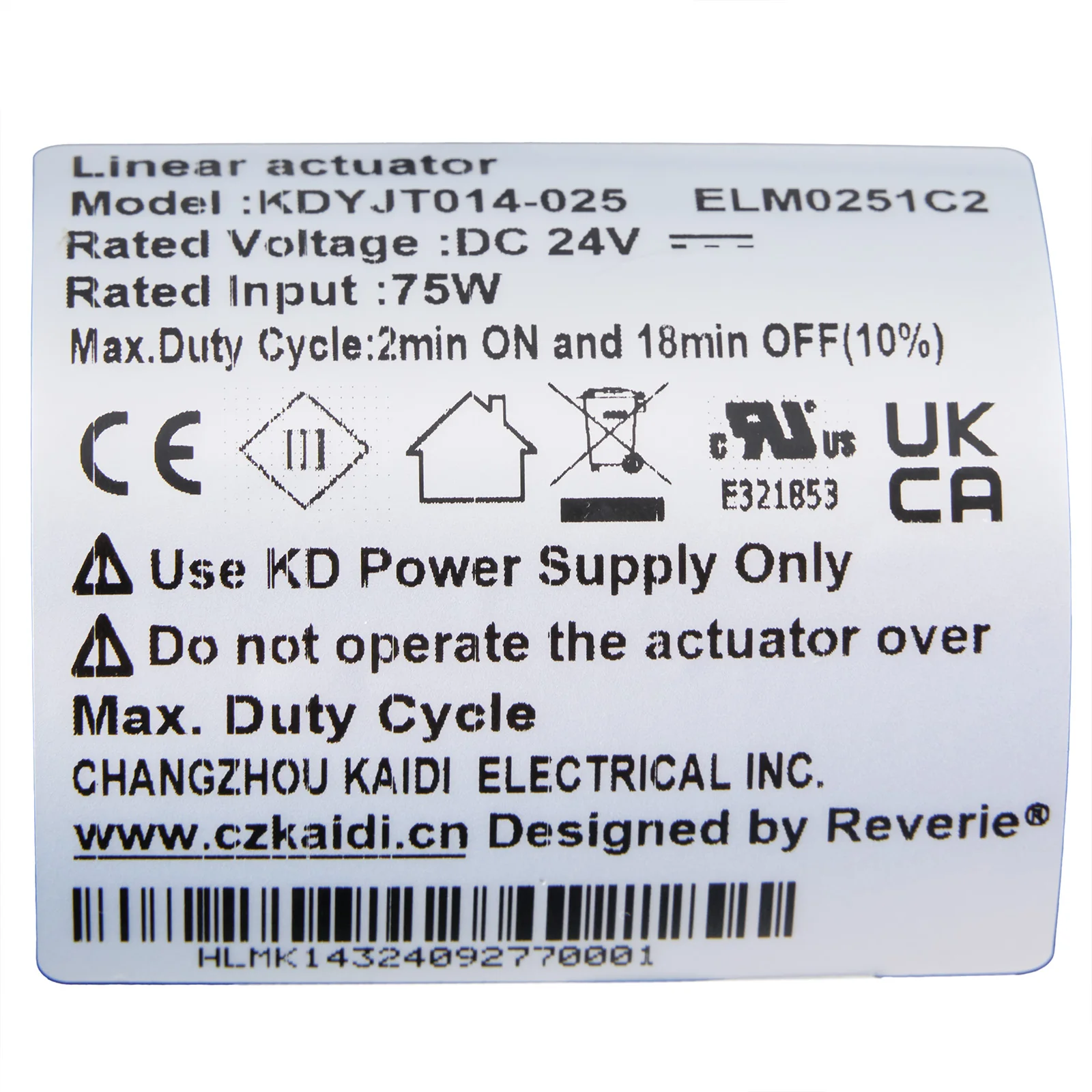

Specifications:

• Model: KDYJT014-025

• Rated Voltage: DC 24V

• Rated Input: 75W

• Retracted Length: 330mm

• Max Load: 6000N

• Speed: 4~6mm/s
• Stoke: 100mm
• Duty Cycle: 2min ON, 18min OFF
