OKIN RF.27.19.33 Wireless Remote Control for Adjustable Bed Bases Hand Control Handset

Compatibility:

• Direct replacement for the RF.27.19.33 remote controller.
• Replaces the RF.27.19 series with similar functionality, although minor variations in color or button layout may occur.
• Compatible with OKIN CB.11, CB.12.20, CB.13, CB.15, CB.23, CB.24 series control boxes.
• Available in black and white. The color does not affect functionality.
• Not compatible with models other than those explicitly listed above.
• Not compatible with non-OKIN remote controls or control boxes.

Specification:

• Remote Control Series: RF27
• Full Model Number: RF.27.19.33


Features:

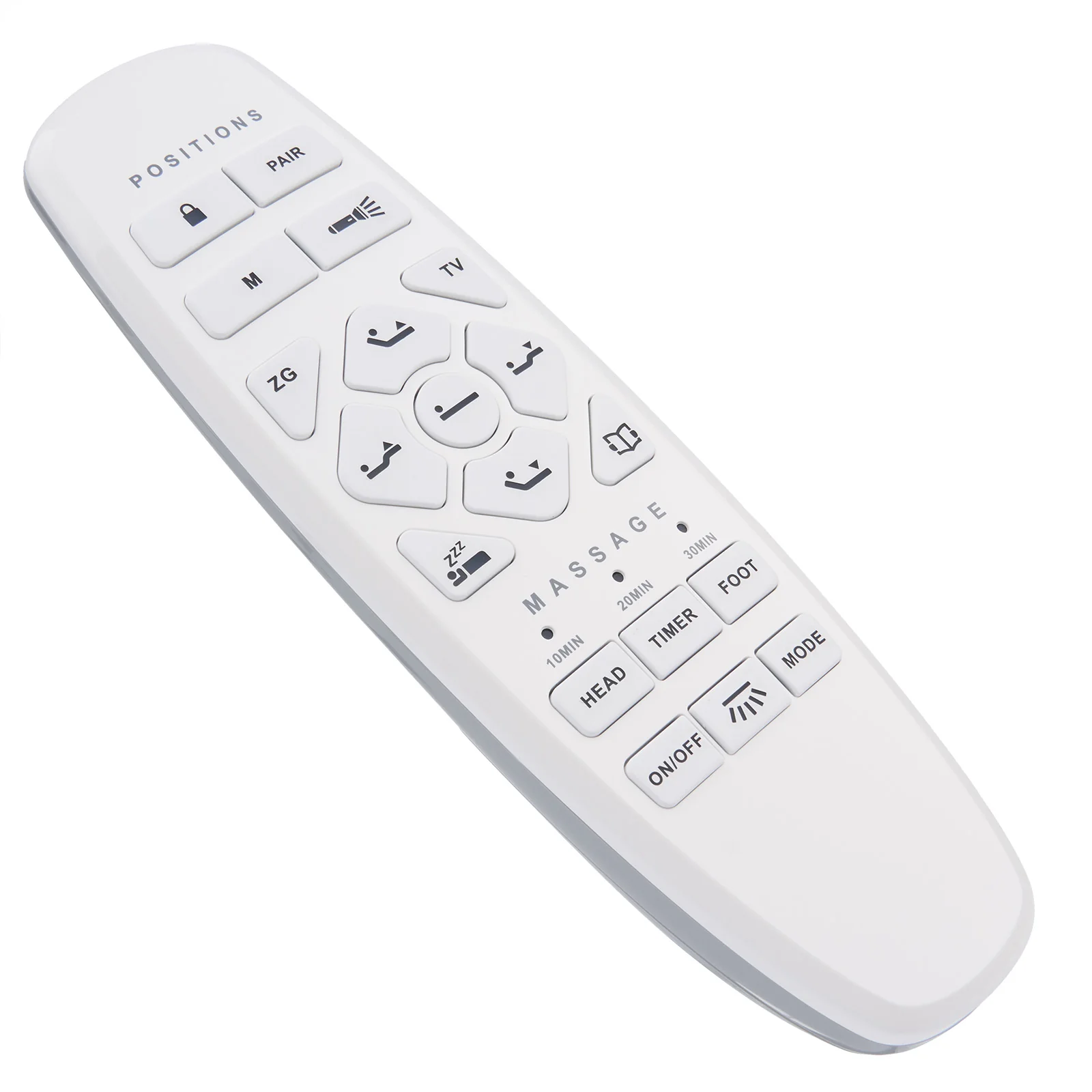

• 19-button interface.

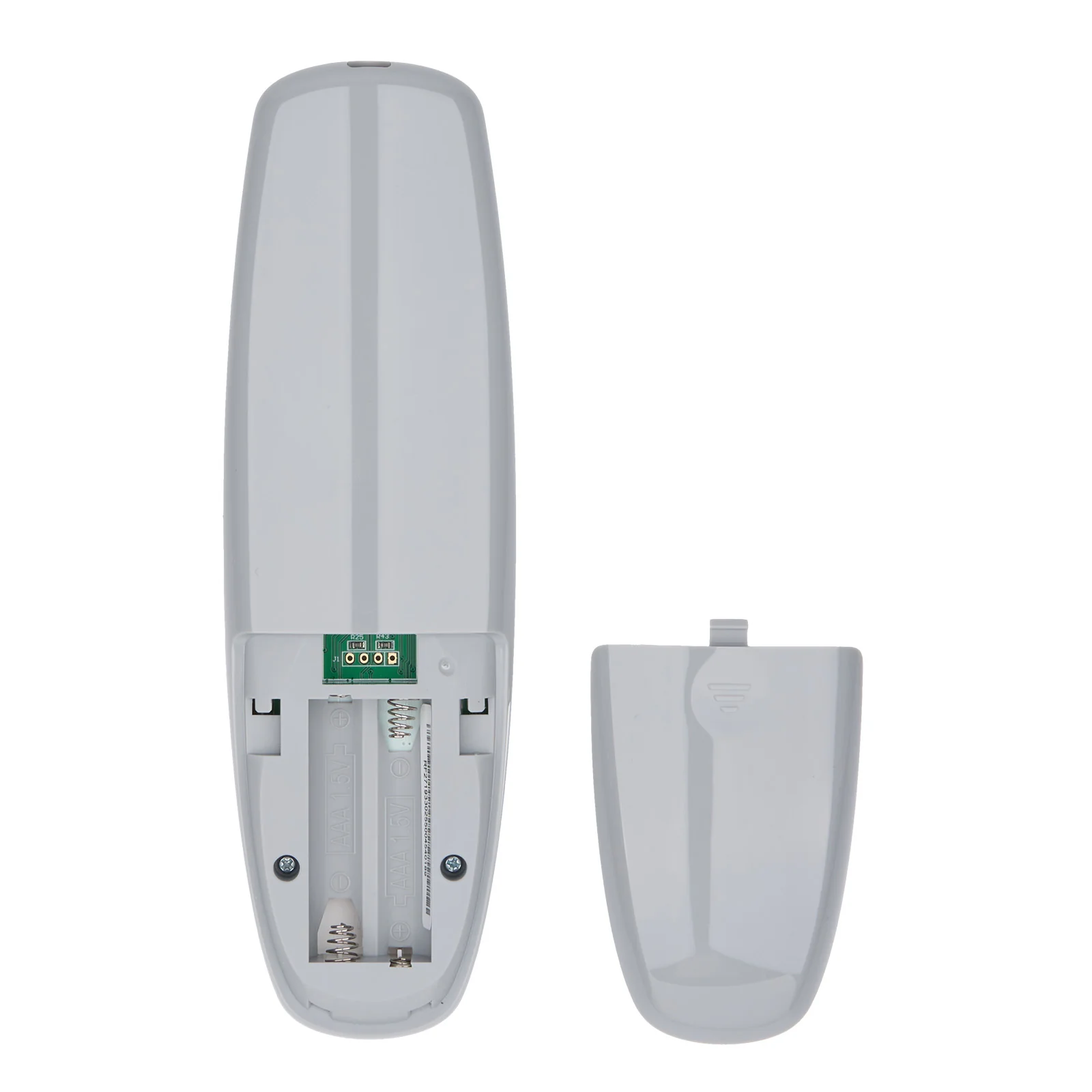

• Requires two AAA batteries (not included).
• Blue backlit.
• One-click flat position.
• Zero Gravity position.
• Four pre-set positions.
• Press the 'M' button to move the bed to the memorized position. Press and hold the 'M' button for 5 seconds (until backlight flashes) to save the current position.
• Child safety lock: Press and hold the child lock button until the backlight flashes to enter locking/unlocking mode.
• Flashlight ON/OFF function.
• Underbed light ON/OFF function.
• Head & foot vibration massage function.

Pairing Instructions:

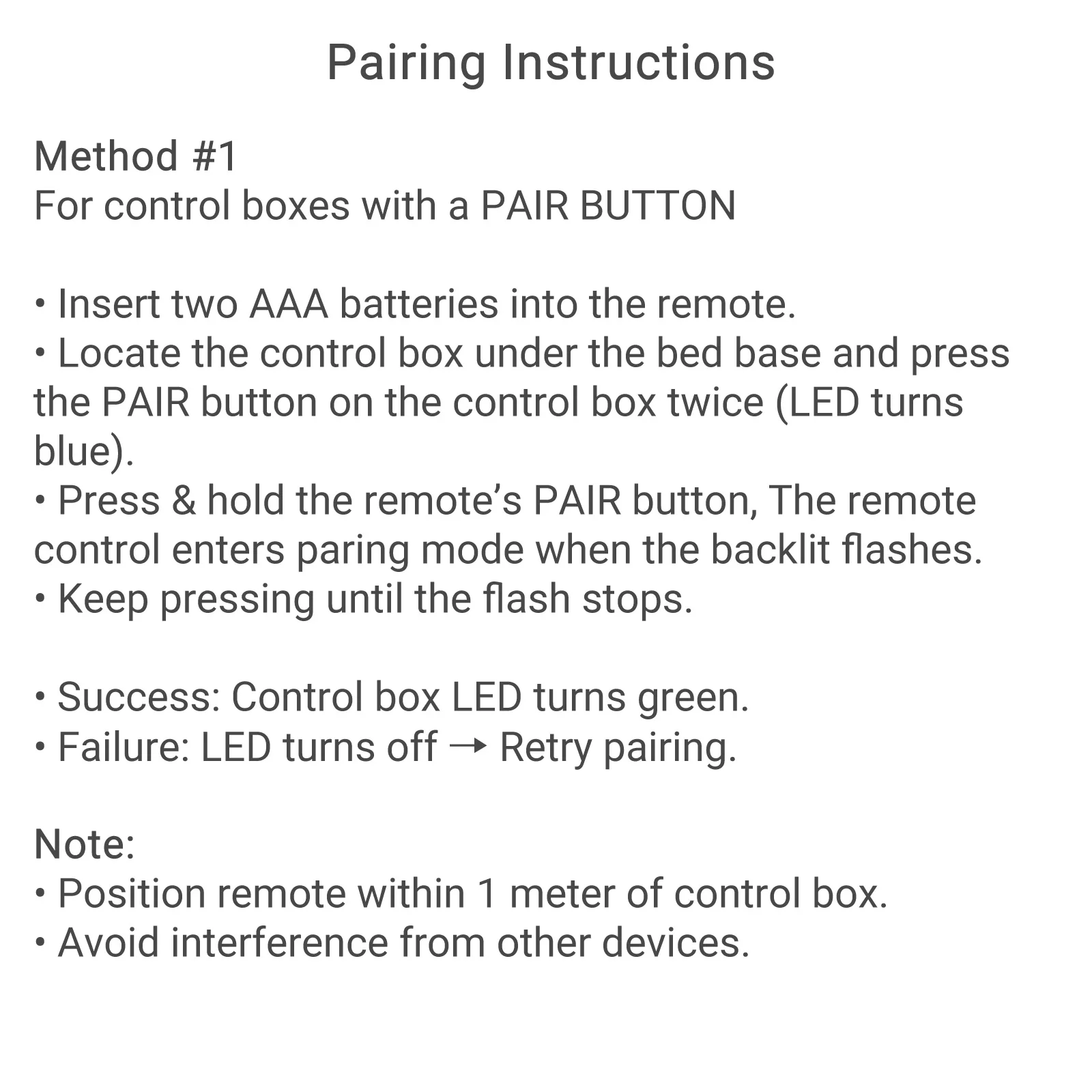

Method #1:

• Insert two AAA batteries into the remote.
• Locate the control box under the bed base and press the PAIR button on the control box twice (LED turns blue).
• Press & hold the remote’s PAIR button, the remote enters pairing mode when the backlight flashes.
• Keep pressing until the backlit stops flashing to complete the paring.


• Successful pairing: The control box LED will turn green.
• Failed pairing: The LED will turn off. Please retry the pairing process.

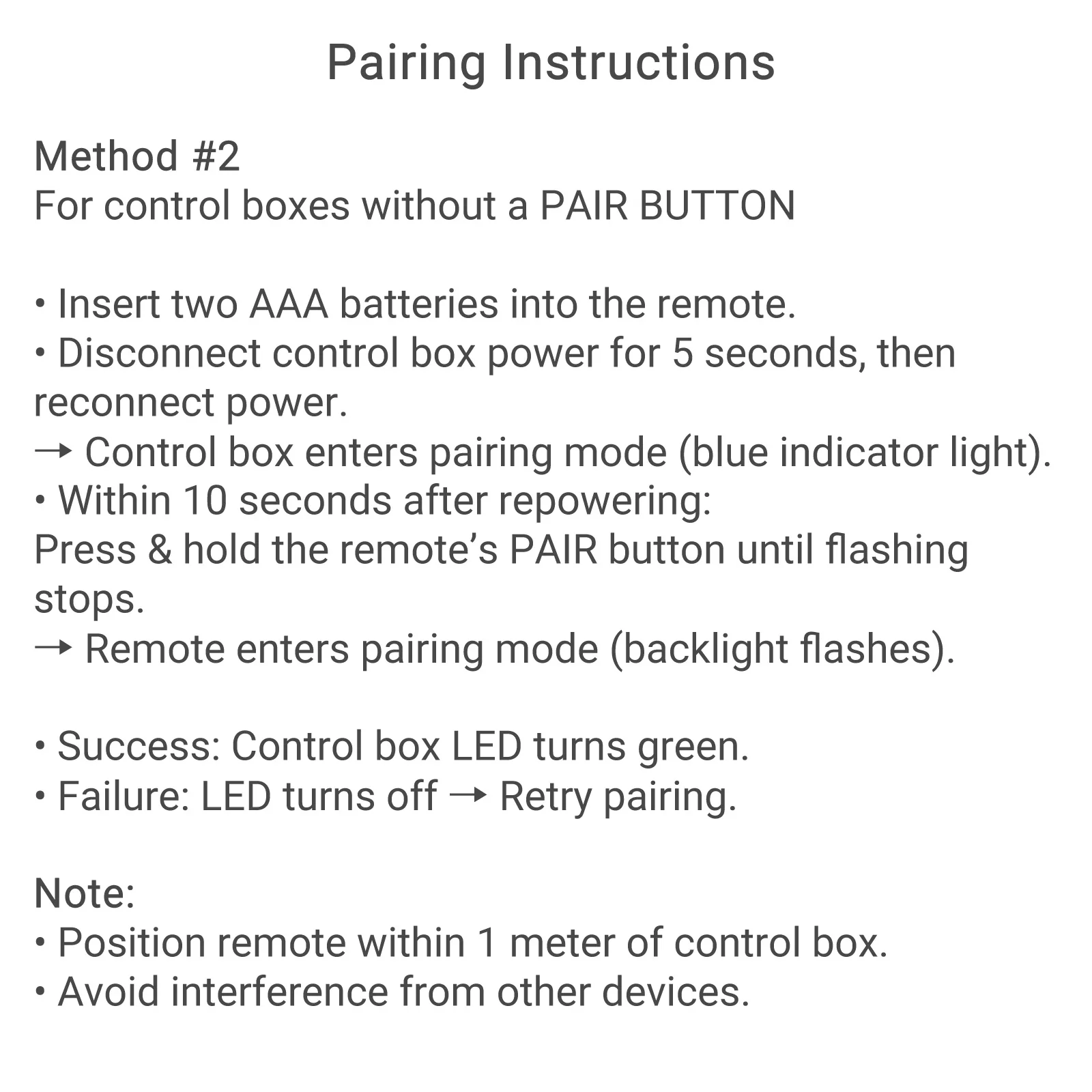

Method #2:

For control boxes without a PAIR button

• Insert two AAA batteries into the remote.
• Disconnect control box power for 5 seconds, then reconnect power. Control box enters pairing mode (blue indicator light).
• Within 10 seconds after repowering: Press & hold the remote’s PAIR button, the remote enters pairing mode when the backlight flashes.
• Keep holding the PAIR button until the backlit stops flashing to complete the paring.


• Successful pairing: The control box LED will turn green.
• Failed pairing: The LED will turn off. Please retry the pairing process.

Note:

• Keep the remote within 1 meter of the control box during pairing.
• Avoid interference from other electronic devices.
