OKIN Control Box CB1522 CB.15.22.18A H For Adjustable Bed Bases

OKIN Control Box CB1522 CB.15.22.18A H For Adjustable Bed Bases

Genuine OKIN CB1522 control box, full model number CB.15.22.18A H . Suitable for adjustable bed bases with two motors.

Compatibility:

  • This control box is model-specific. It can only replace your original device if both share the same model number (CB.15.22.18A H ). Please verify compatibility before purchasing.

Features:

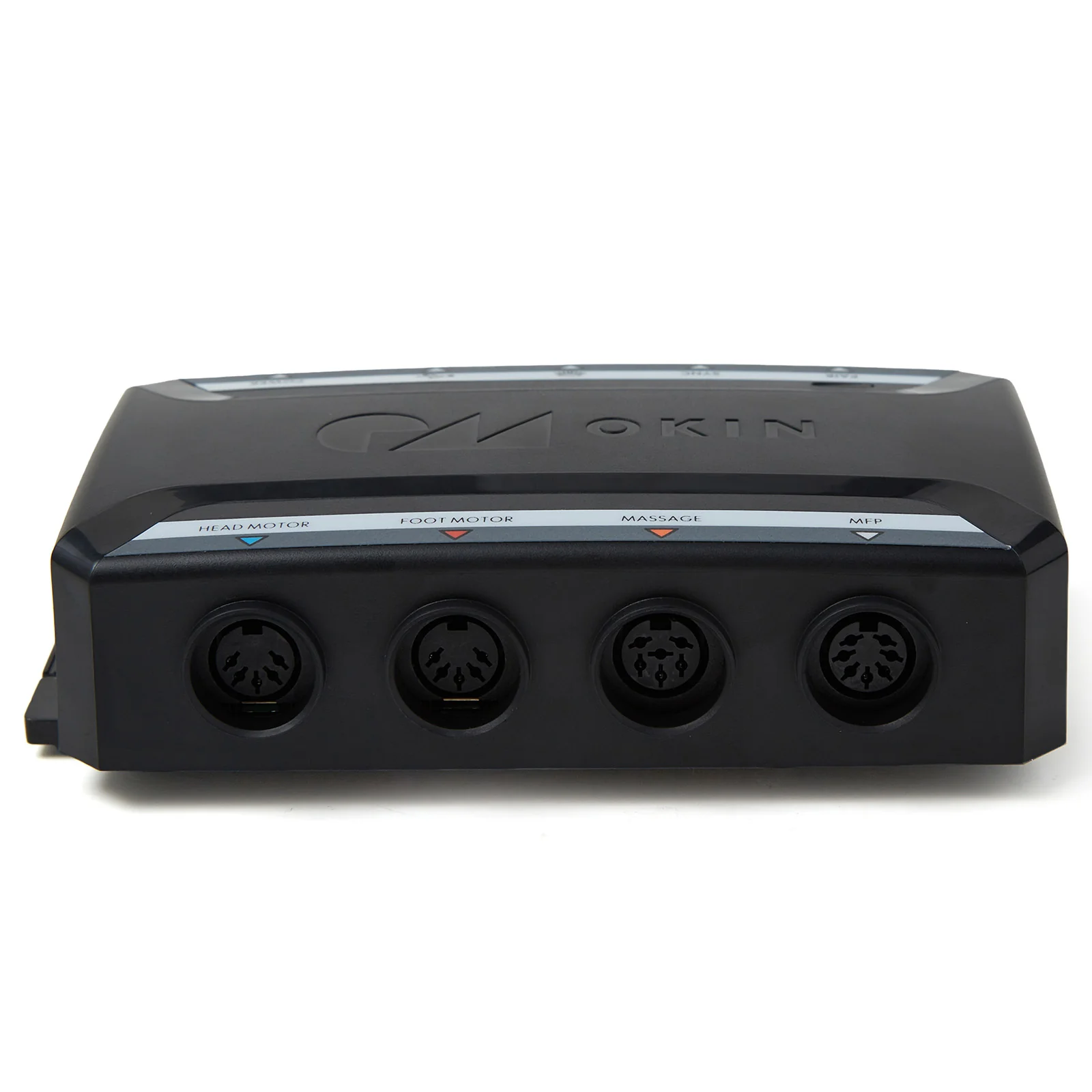

The control box has 8 sockets and a pair button:
  • Two 5 pin sockets for head and foot motor
  • A 6 pin Vibration massage motor socket
  • A MFP1 for slide switch
  • A Sync Socket
  • A 4 pin Under bed light socket
  • A 6-pin USB Port
  • An 8 pin Power socket
  • A Pair Button: The pair button is a multi-function button.
    • Double click it to enter pair mode (the LED light turns to blue)
    • Press and hold it to reset the bed to lower position.

Pair instruction:

  • Double click Pair button on the control box, the LED light turns into blue color, the control box enters pairing mode.
  • Press and hold the paring button of Remote, the backlight of paring LED flashes, the backlight of remote flashes, the remote enters paring mode.
  • The backlight of paring LED of remote stops flashing, and the paring led of control box turns off, it indicates that the paring is successful.

  • If it fails, repeat all the processes above.

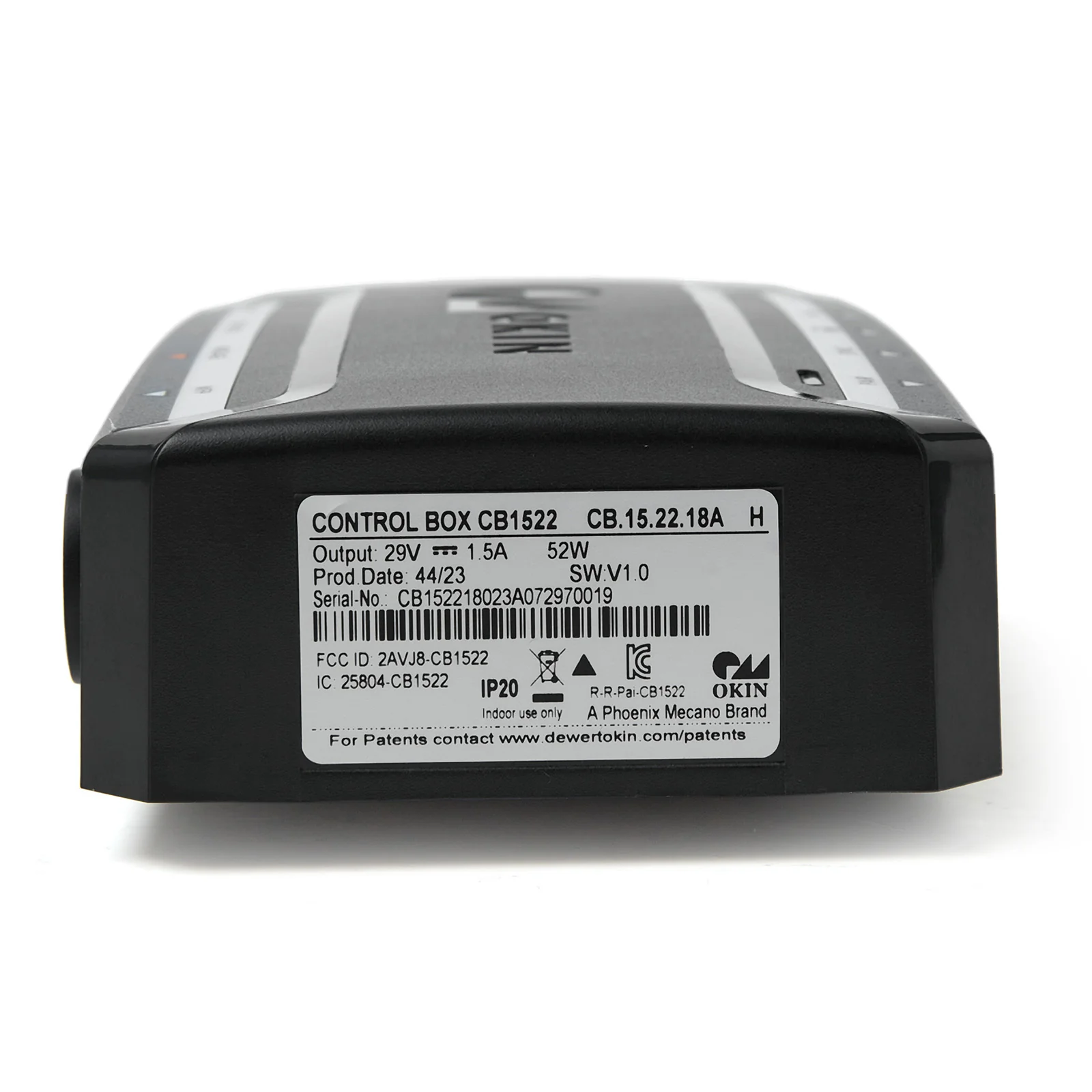

Specification:

  • Full model number: CB.15.22.18A H
  • Output: 29V 1.5A 52W
  • FCC ID: 2AVJ8-CB1522
  • IC: 25804-CB1522
