OKIN CB.24.22.02 BH Control Box for Adjustable Bed Bases

Genuine OKIN CB2422 control box, full model number CB.24.22.02 BH. Suitable for adjustable bed bases.

Compatibility:

This control box is model-specific. It can only replace your original device if both share the same model number (CB.24.22.02 BH). Please verify compatibility before purchasing.

Features:

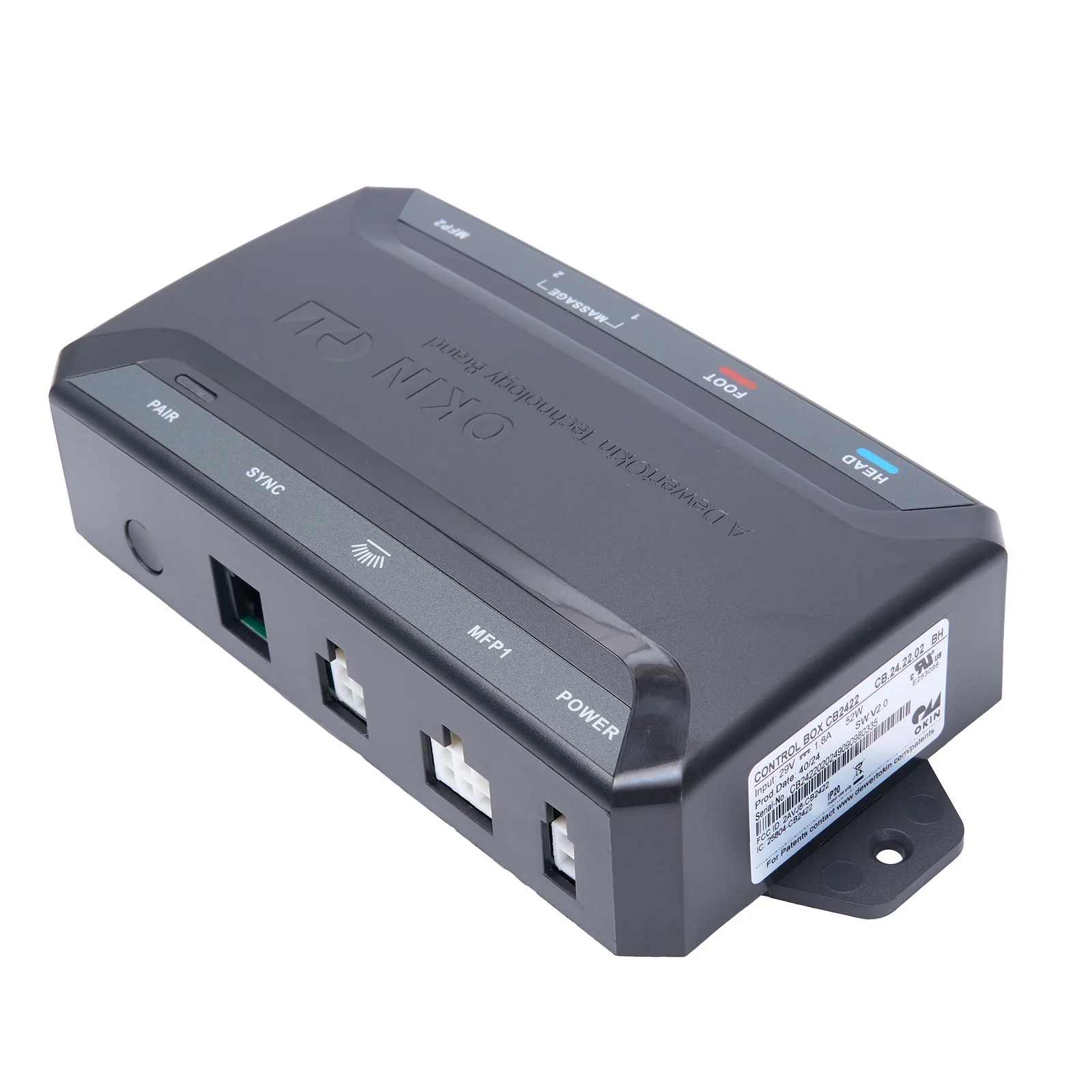

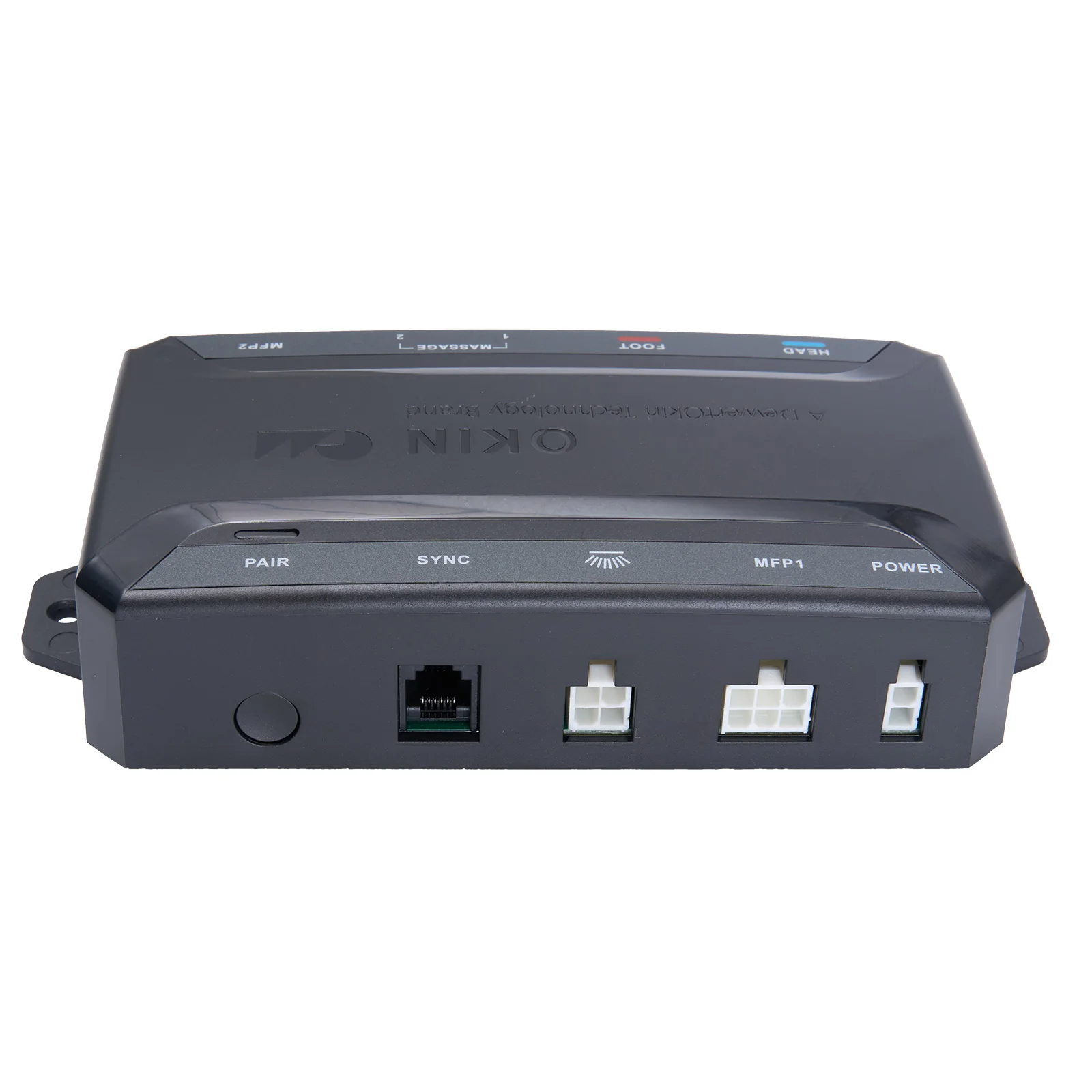

• The control box has 9 sockets and a pair button:

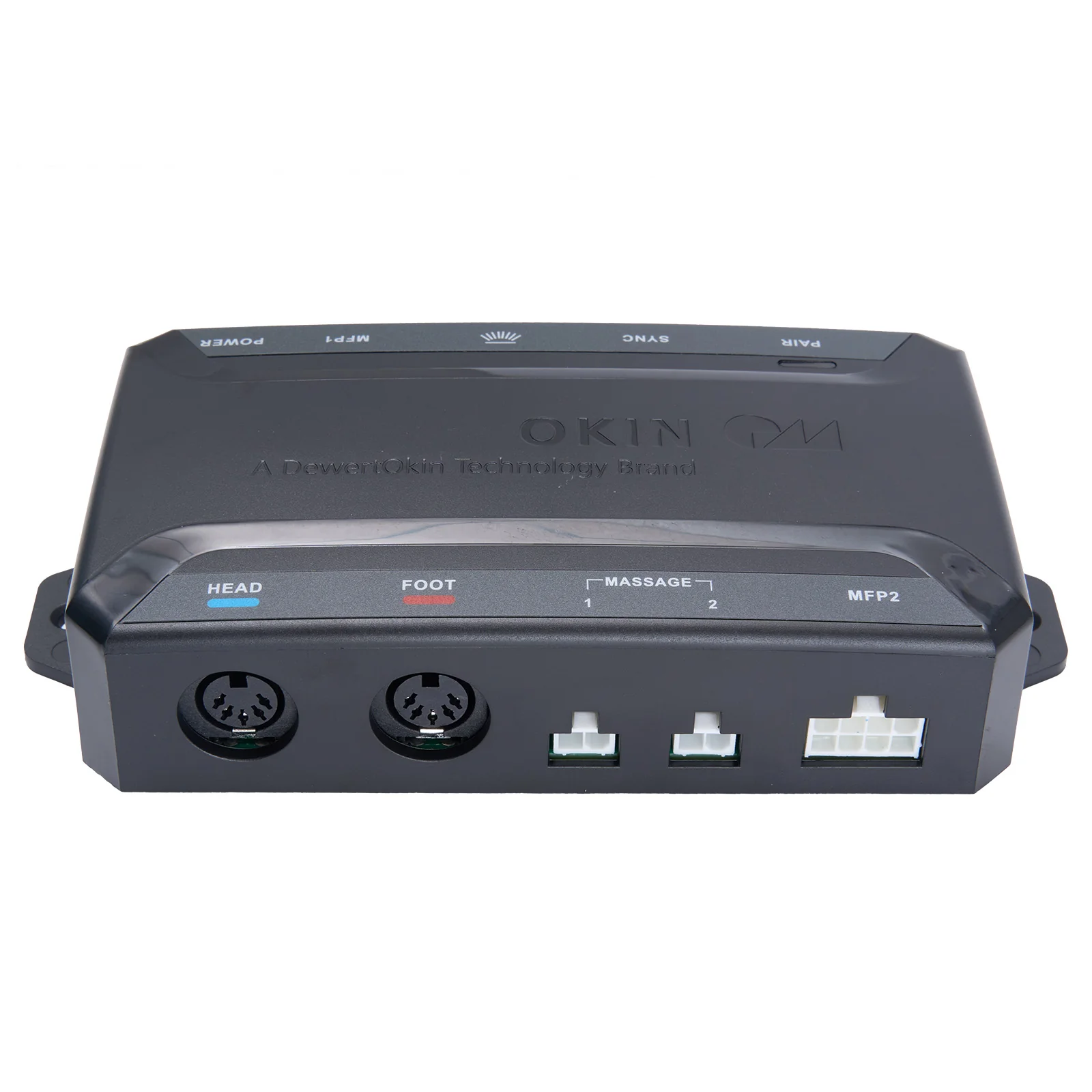

• Two 5 pin sockets for head and foot motor

• 2 Vibration massage motor sockets

• 1 MFP1 for slide switch

• 1 MFP2 socket for WIFI box or Bluetooth box or any other device.

• 1 Sync socket

• 1 Underbed light socket

• 1 Power socket

Pair Button:

The pair button is a multi-function button.

• Double click it to enter pair mode (the LED light turns to blue)

• Press and hold it to reset the bed to lower position.

Pair instruction:

• Double click Pair button on the control box, the LED light turns into blue color, the control box enters pairing mode.

• Press and hold the paring button of Remote, the backlight of paring LED flashes, the backlight of remote flashes, the remote enters paring mode.

• The backlight of paring LED of remote stops flashing, and the paring led of control box turns off, it indicates that the paring is successful.

• If it fails, repeat all the processes above.

Specification:

• Full model number: CB.24.22.02 BH

• Input: 29V 1.8A 52W

• FCC ID: 2AVJ8-CB2422

• IC: 25804-CB2422
