Mulin MLKZWX018-C1 Control Box for Adjustable Bed Bases

This is a genuine Mulin MLKZWX018-C1 Control Box, also referred to as a junction box. It is designed for use with adjustable bed bases equipped with 2 motors.

Compatibility:

This control box is not cross-compatible. Please only proceed if your existing control box bears the identical model number: MLKZWX018-C1.

Features:

• Two 5-pin motor connectors for the head and foot sections.

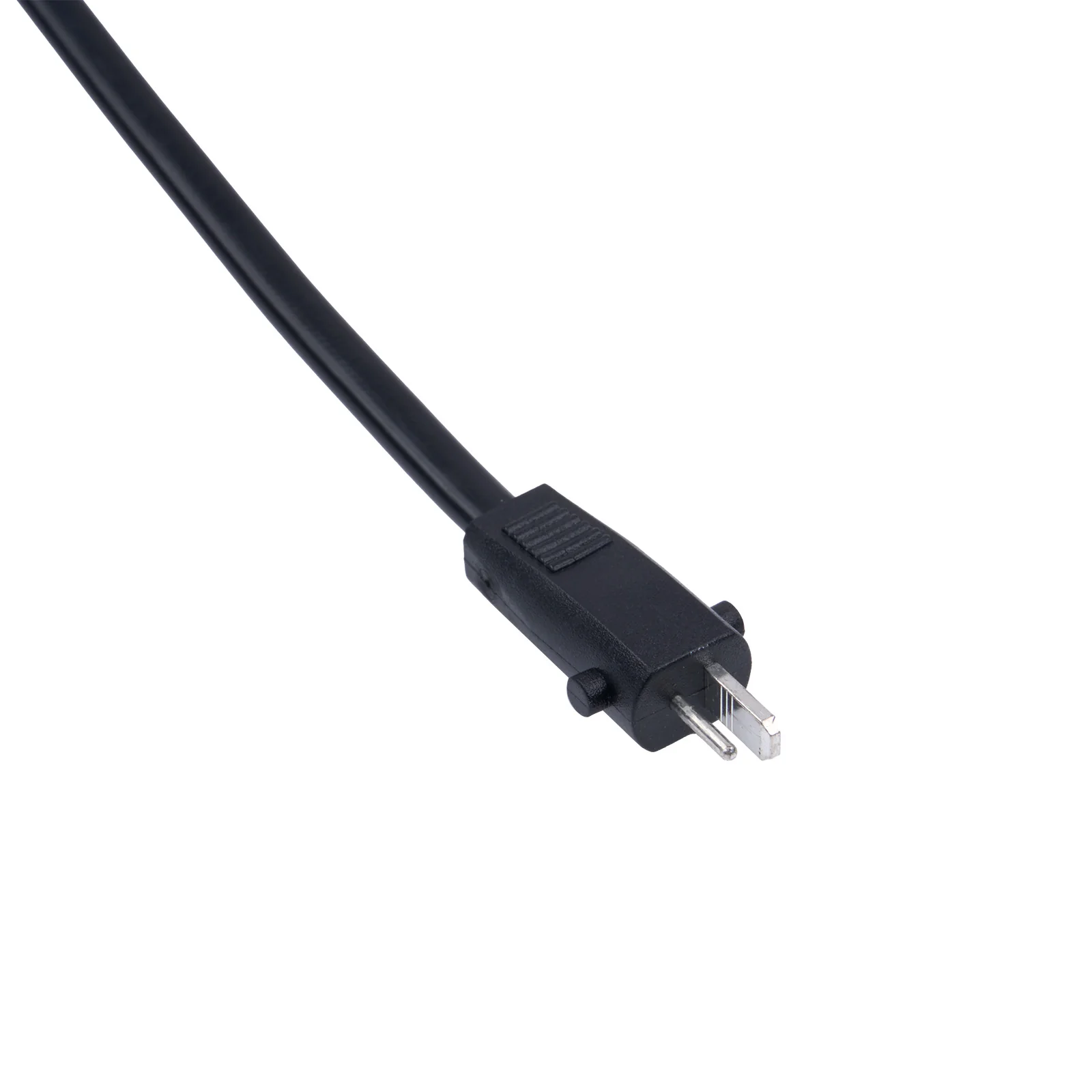

• An integrated lead with a 2-pin male plug for connection to the power adapter.

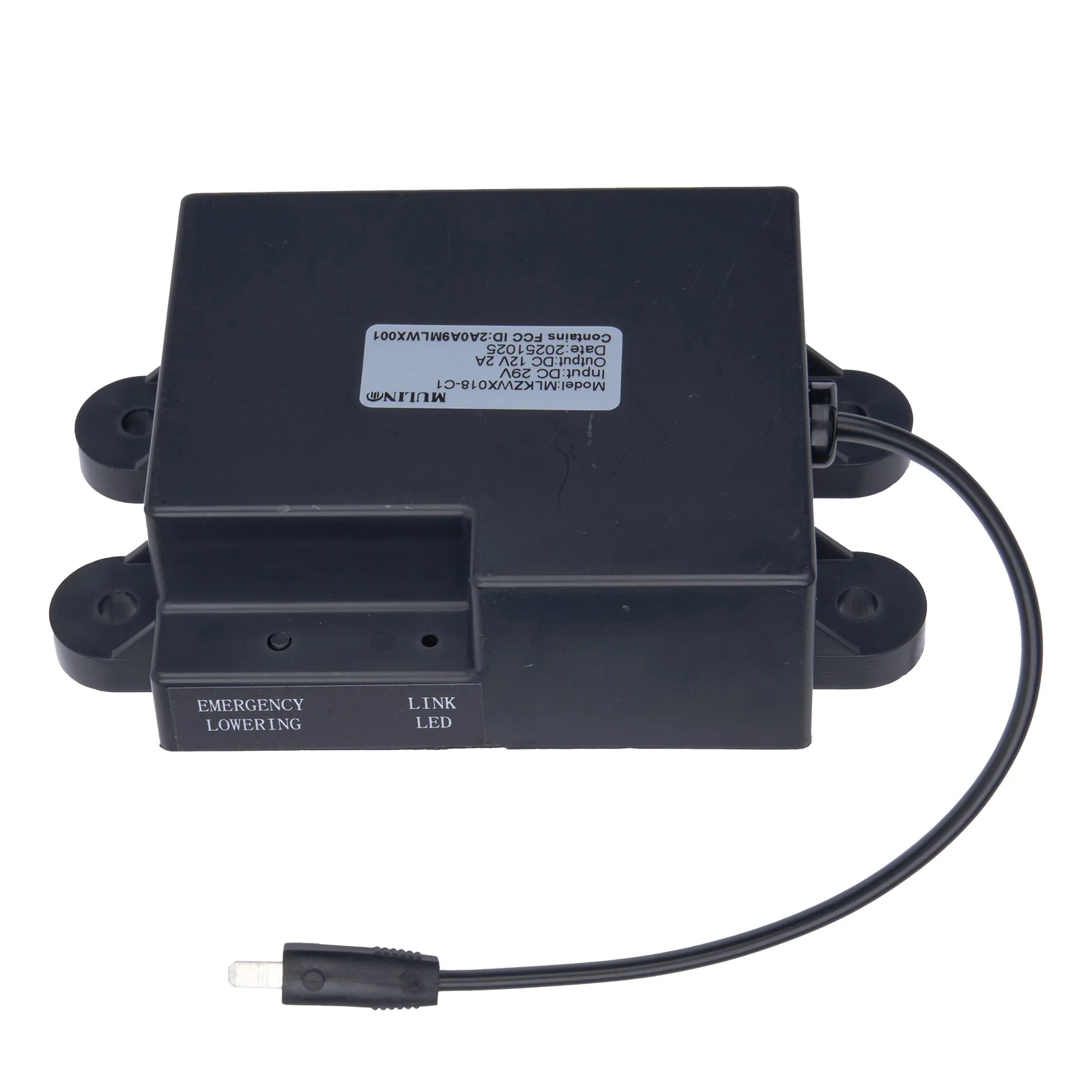

• An emergency lowering button for manual bed adjustment.

Important Note:

• Before initial use, you must pair your remote control with the control box.
• Remote Pairing Procedure:
  • Power on the control box.
  • Immediately press and hold both the Head Up and Head Down buttons on the remote control.
  • Once the remote indicator begins flashing, continue holding both buttons for approximately 6 seconds, until the flashing ceases.
  • Test the pairing by operating the head and foot adjustment buttons. If the bed responds correctly to all commands, the pairing is successful.
• Key Tips:
  • The pairing sequence must be completed within two minutes of powering on the unit. After this period, the control box will exit pairing mode.
  • During pairing, ensure the remote control is within 1.5 meters of the control box.
