Richmat HJA58 GM1450-LM Linear Actuator - Stroke 212mm

This is a genuine Richmat linear actuator, item number HJA58, part number GM1450-LM, stroke 212mm. Suitable for some Golden and UC lift chairs.

Compatibility:

• This actuator is not cross-compatible, please only order it when your existing actuator has the exact same part number GM1450-LM.

• This actuator is compatible with the following chair models: UC550-JPT, UC550-M, UC550-L, UC556-SME, UC556-MLA, UC520-M, UC792, UC680-M.


Feature:

• This actuator is the lifting motor for the chair.

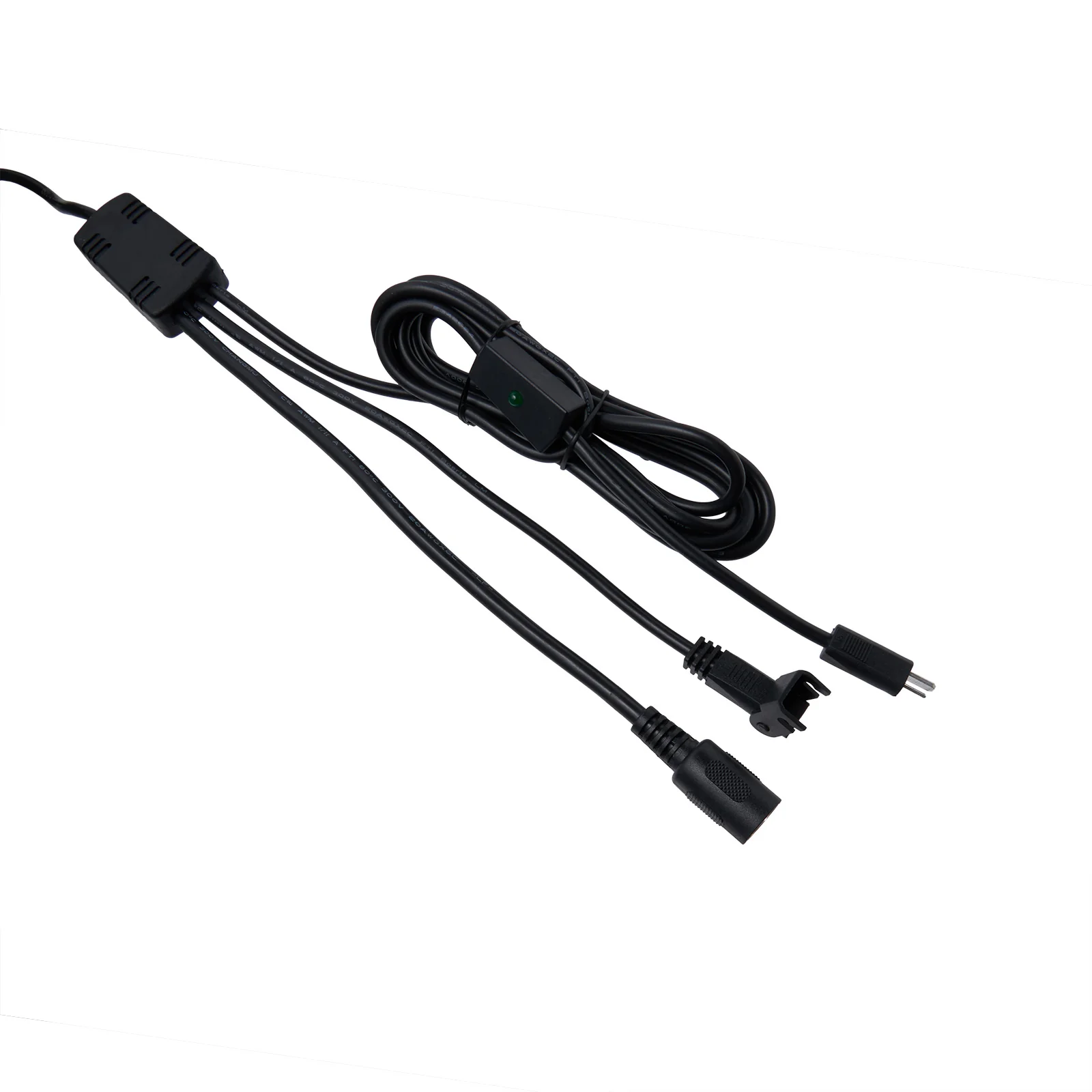

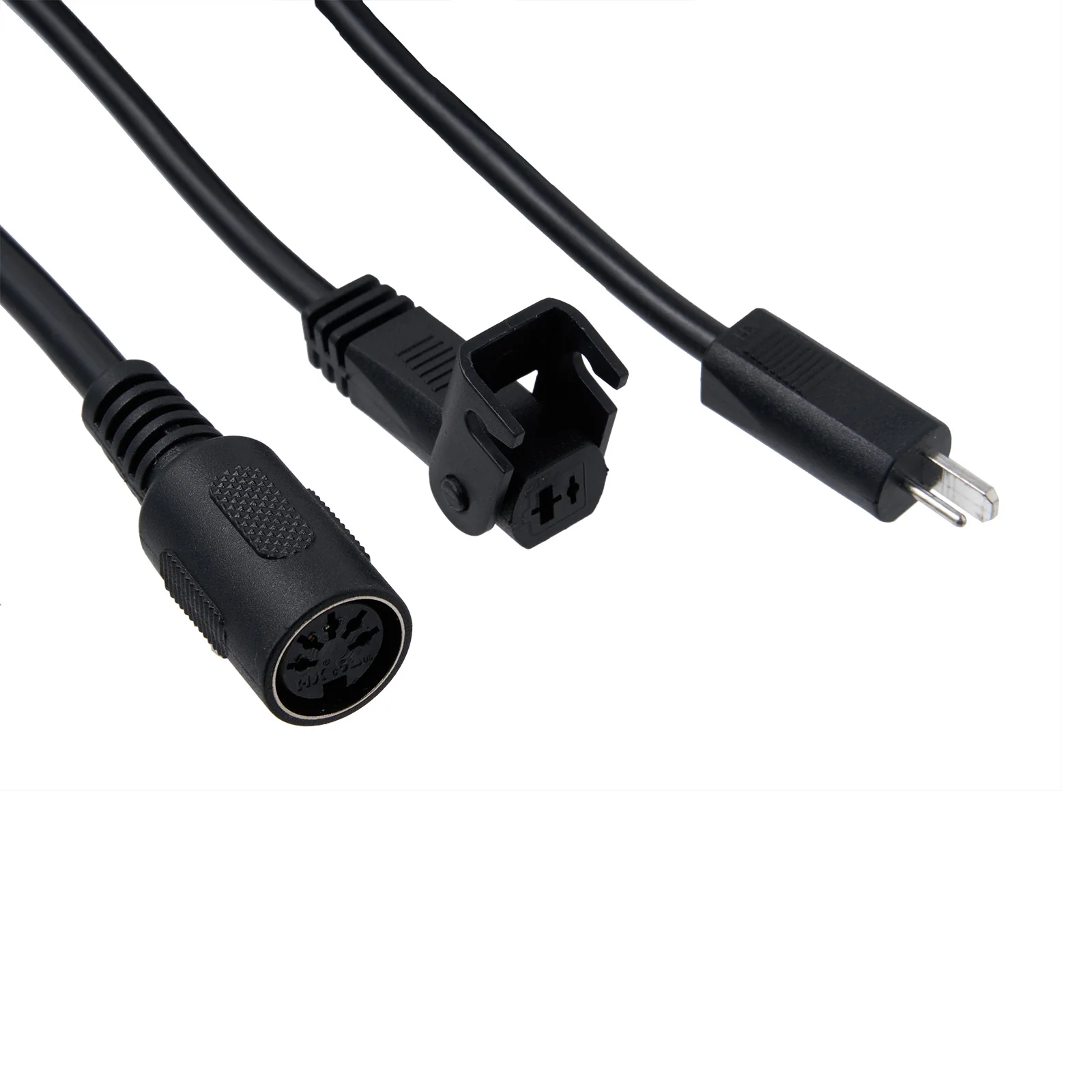

• This linear actuator is the main motor, it has three wires and plugs, the 2-pin male plug connects to the power supply, the 2-pin female plug connects to the deputy motor, the 5-pin round plug connects to the remote controller.

Specification

• Part number: GM1450-LM

• Item number: HJA58

• Stroke: 212mm

• Input: DC 24V, 3A Max.

• Max. load: push 6000N pull 4000N

• Duty Cycle: 10% max, 2 min ON / 18 min OFF
