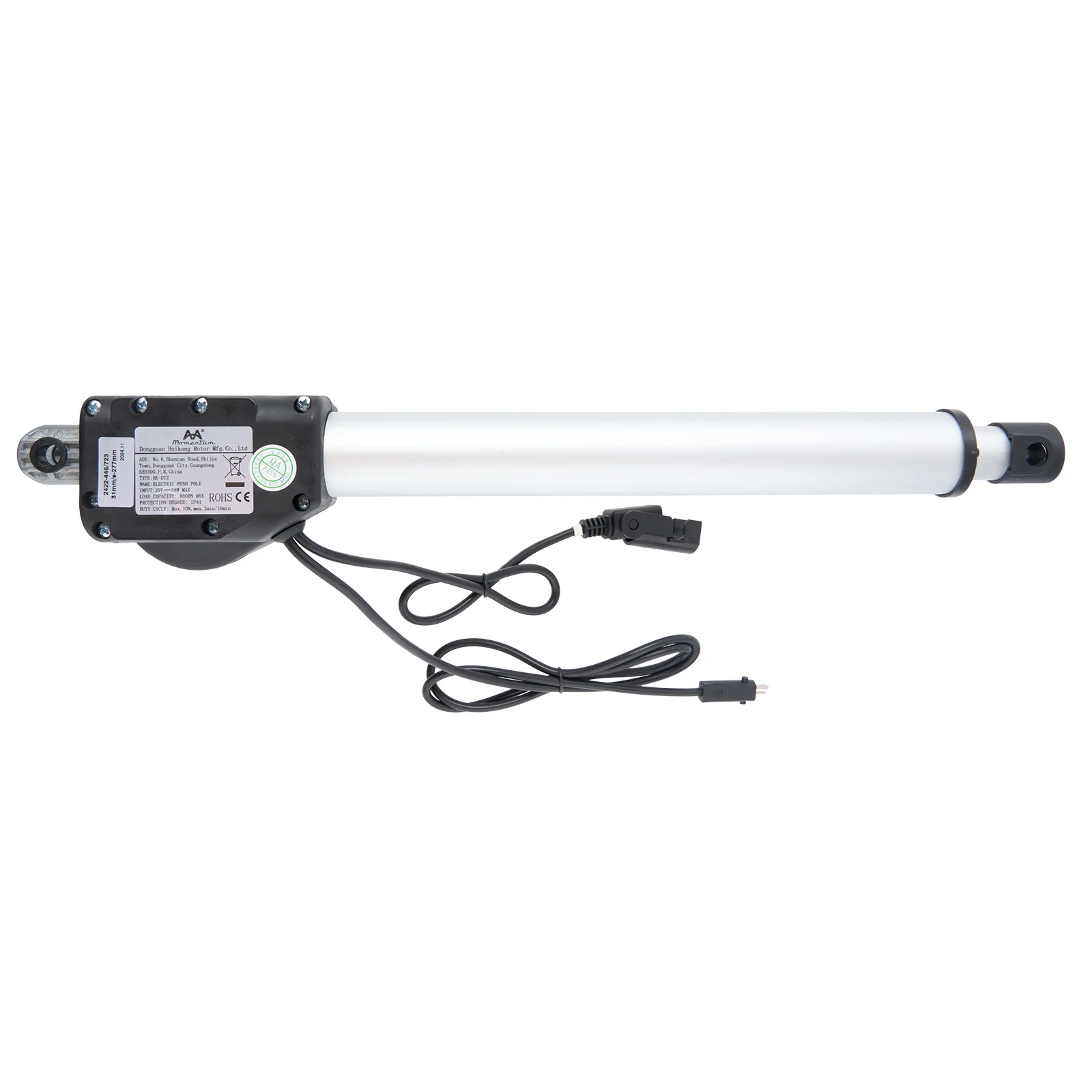

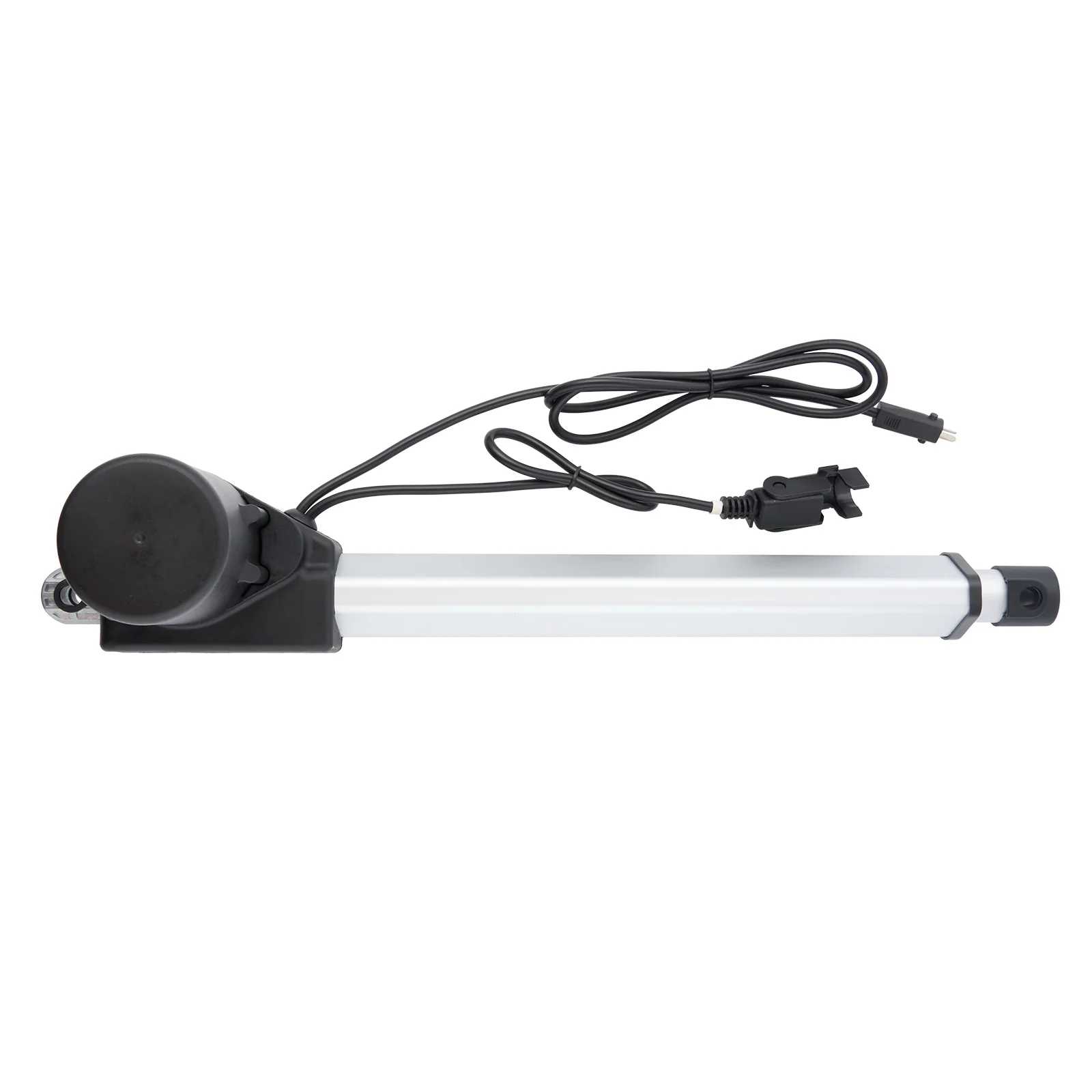

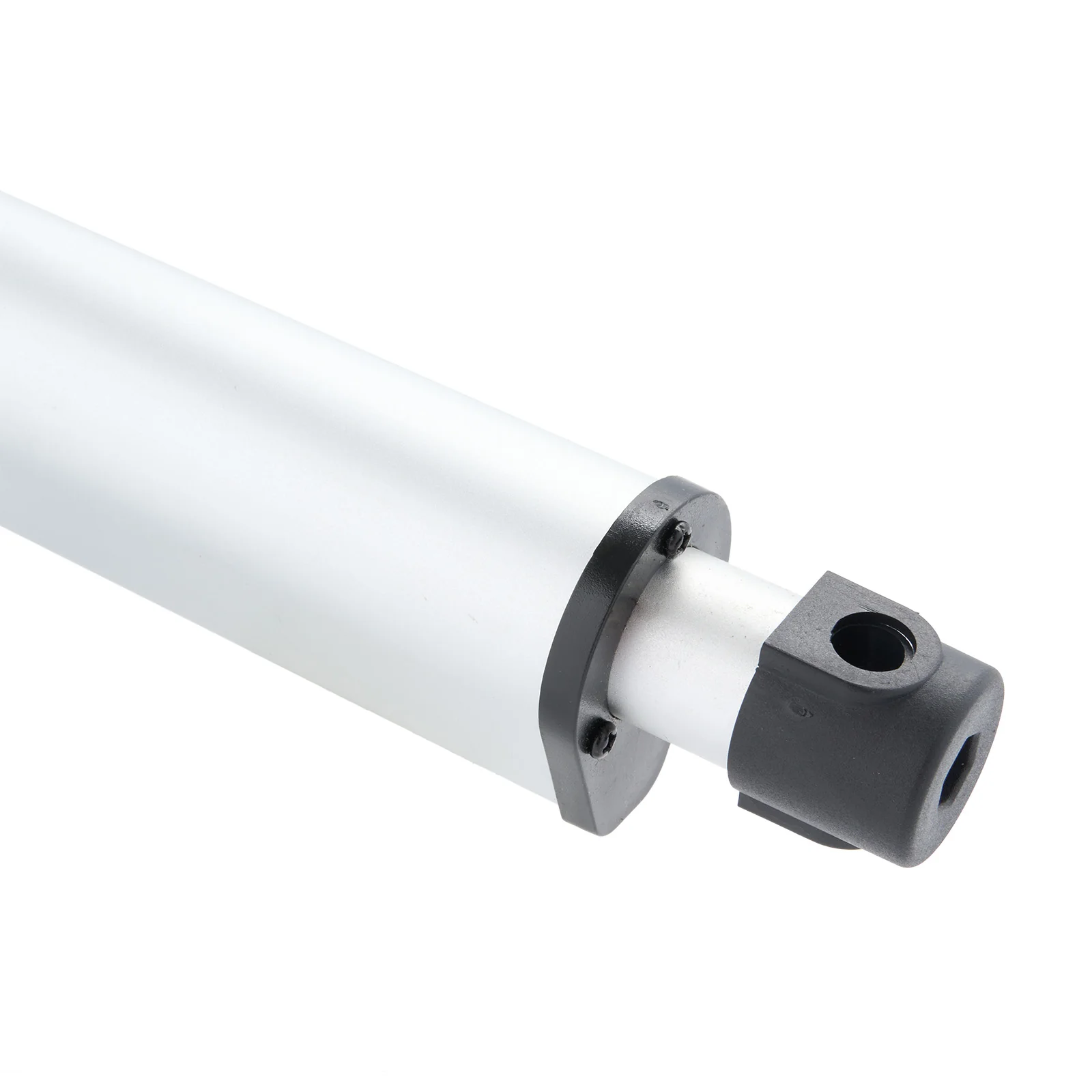

MOMENTUM HKDTZ07-2422-446/723 Linear Actuator for Recliner/Lift Chair

This is the genuine MOMENTUM HKDTZ07-2422-446/723 linear actuator, manufacturer part number MPJLDQ0402A.

Compatibility:

This linear actuator is not a universal replacement. To ensure compatibility, please verify the exact model number of your existing actuator before ordering.

How to Find the Model Number

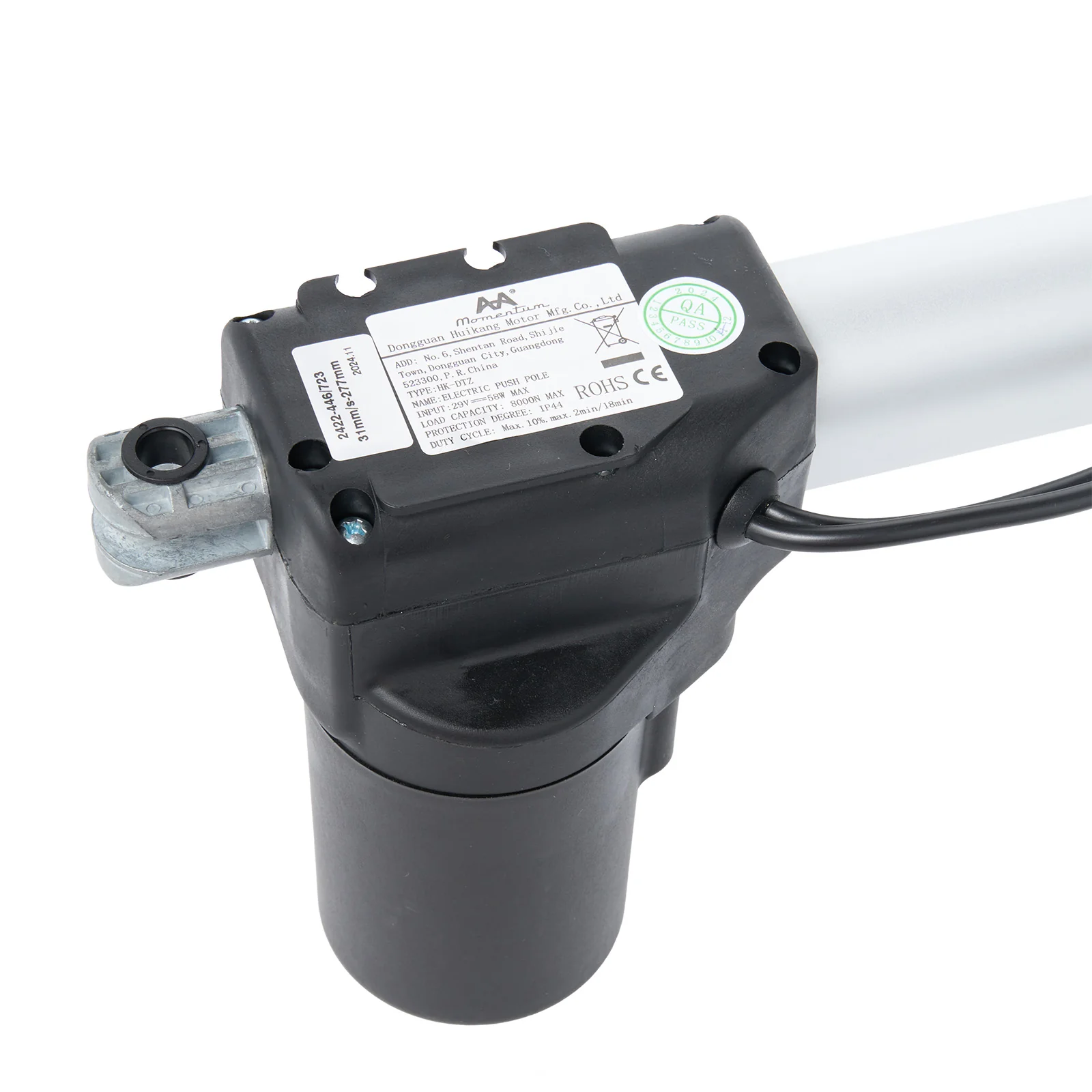

• Your existing actuator has two tags. The main tag displays a partial model number, HK-DTZ. However, this is not the complete number.

• The full model number is located on a second tag, positioned on the bottom of the motor. This number will typically follow the format HKDTZXX-XXXX-XXXX/XXXX.

Compatible Model Numbers

This linear actuator is a suitable replacement for the following models:

• HKDTZ07-2422-446/723

• 2422-446/723

• HKDTZ01-2422-446/723


If your actuator's model number doesn't match any of the listed ones, this product might not be compatible.

Need Help? Contact Us

If you're unsure about the compatibility of this actuator with your chair, please don't hesitate to contact us before placing your order. Our support team is happy to assist you.

• Email: [email protected]

• Phone: +8613802247190

Features

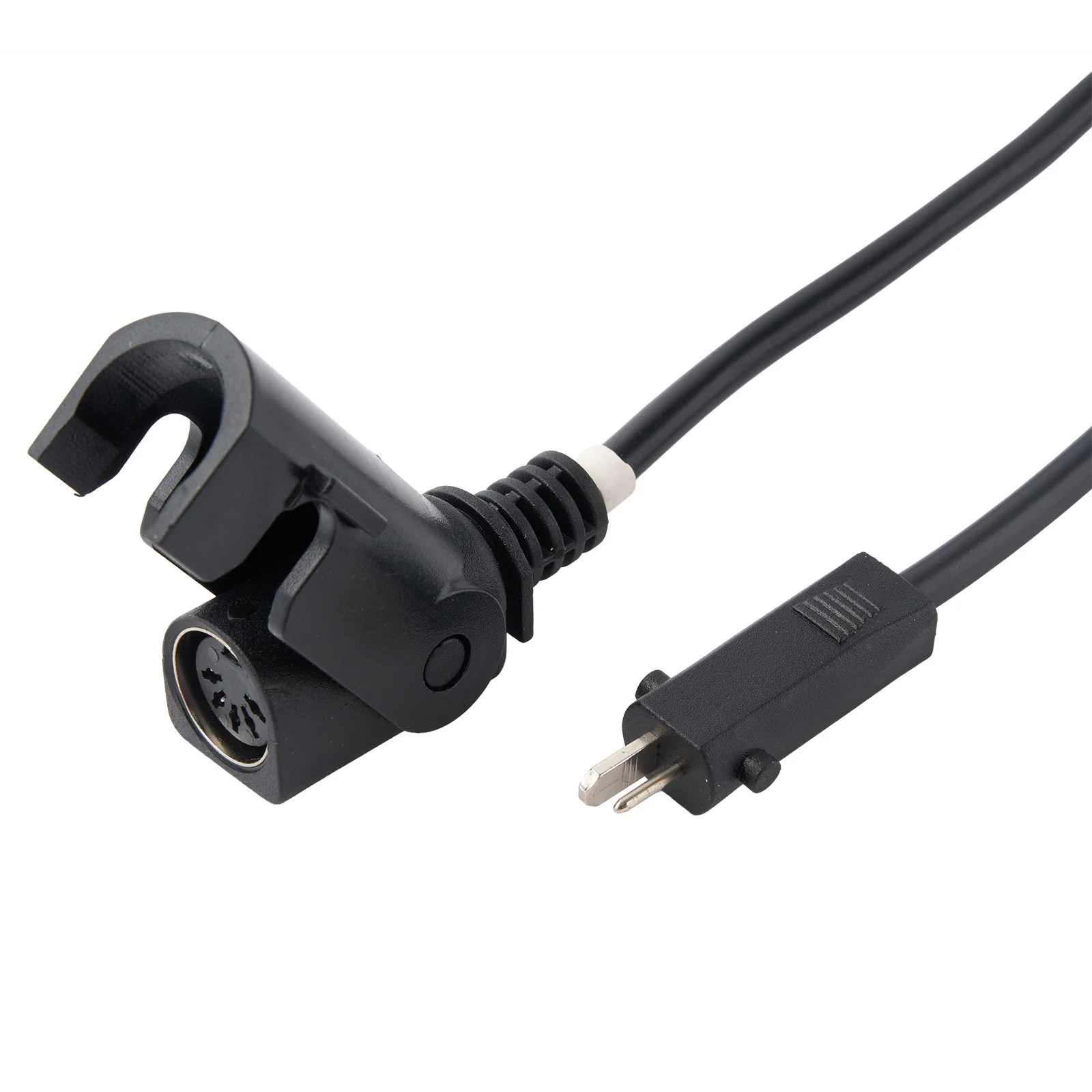

This actuator has two cables and plugs:

• A male 2 pin plug connects to the power adapter.

• A female 5 pin plug connects to the remote controller/switch.

Specifications:

• Model: HKDTZ07-2422-446/723

• Input: DC 29V

• Power: 58W

• Max load: 8000N

• Speed: 31mm/s

• Stoke: 277mm

• Duty Cycle: 2min ON, 18min OFF
