29V 2A AC/DC Recliner Power Adapter with Battery Compartment AC cable & DC cable

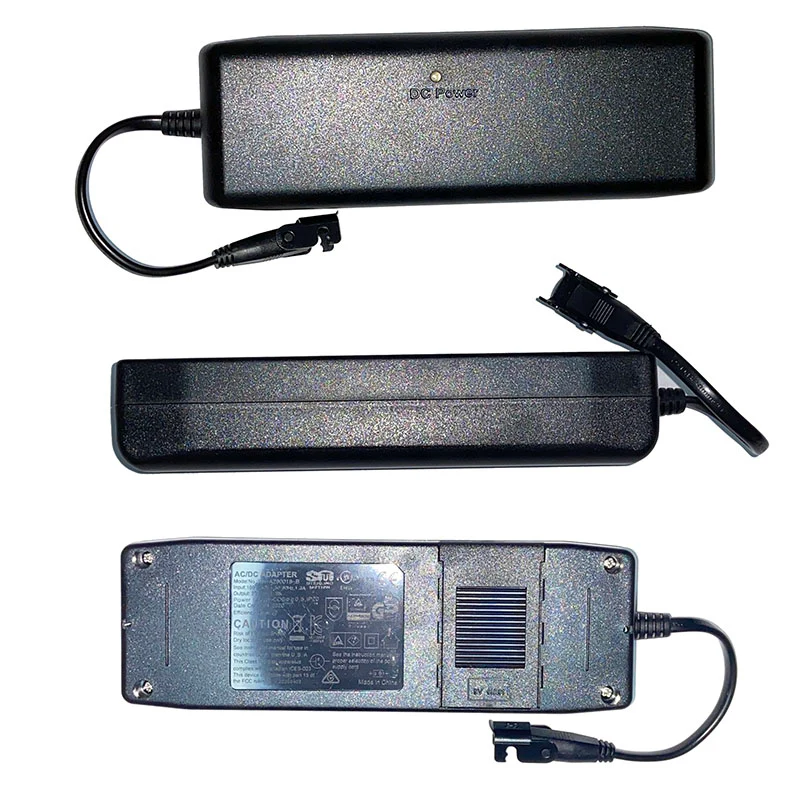

• This power supply kit includes an AC cable, an AC/DC switch power supply, and a DC cable.
• The power supply has a rated output of 29V 2A. The output DC plug is a 2-pin female connector.

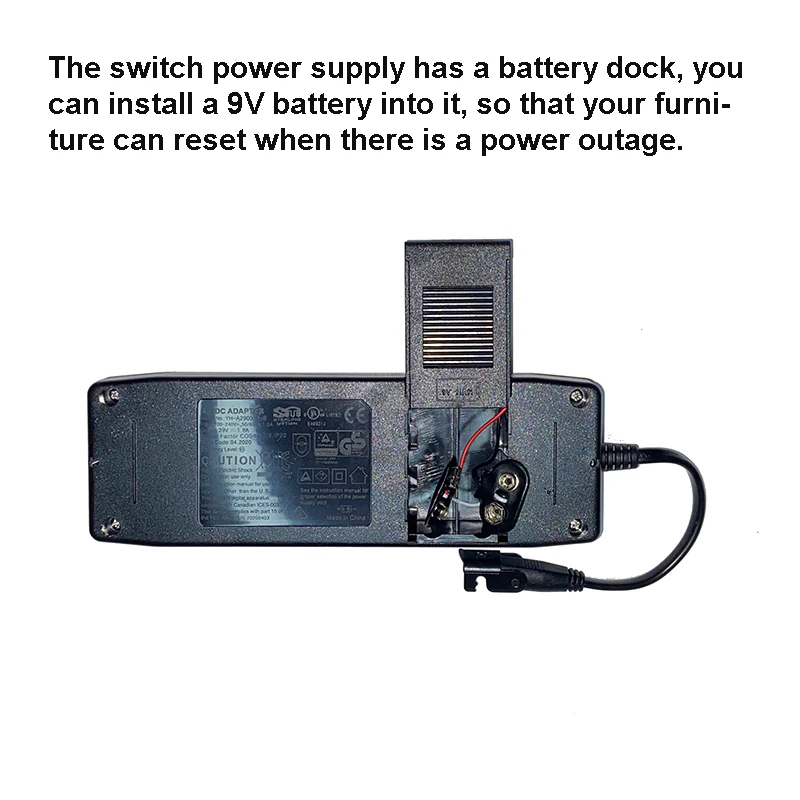

• A battery compartment on the power supply unit allows for connection to two 9V batteries to power down the furniture in case of a power outage.

Compatibility

• This adapter can serve as a replacement if the original adapter meets these requirements:
  • Output voltage is between 24-35V.
  • Total power draw does not exceed 58W.
  • Output plug is a standard 2-pin female connector.

• This adapter is compatible with most electric furniture from brands such as Golden, Pride, Ashley, Lane, Best Home Furnishing, Cheers, etc.
• It is not compatible if:
  • The original power adapter's power draw exceeds 58W.
  • The original adapter uses a non-standard DC plug.

Configuration Options

The kit is available in two configurations:

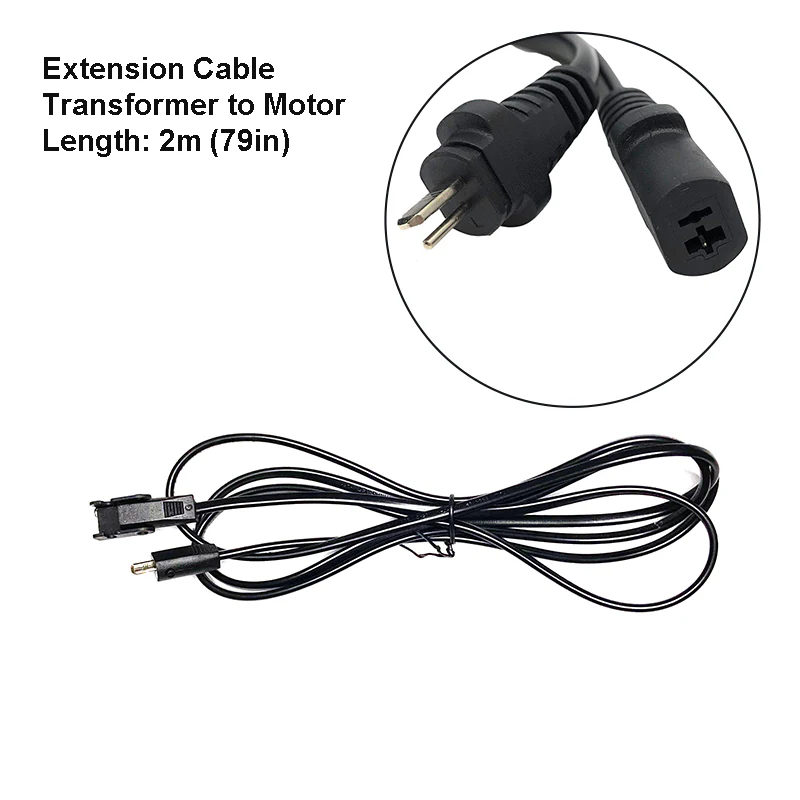

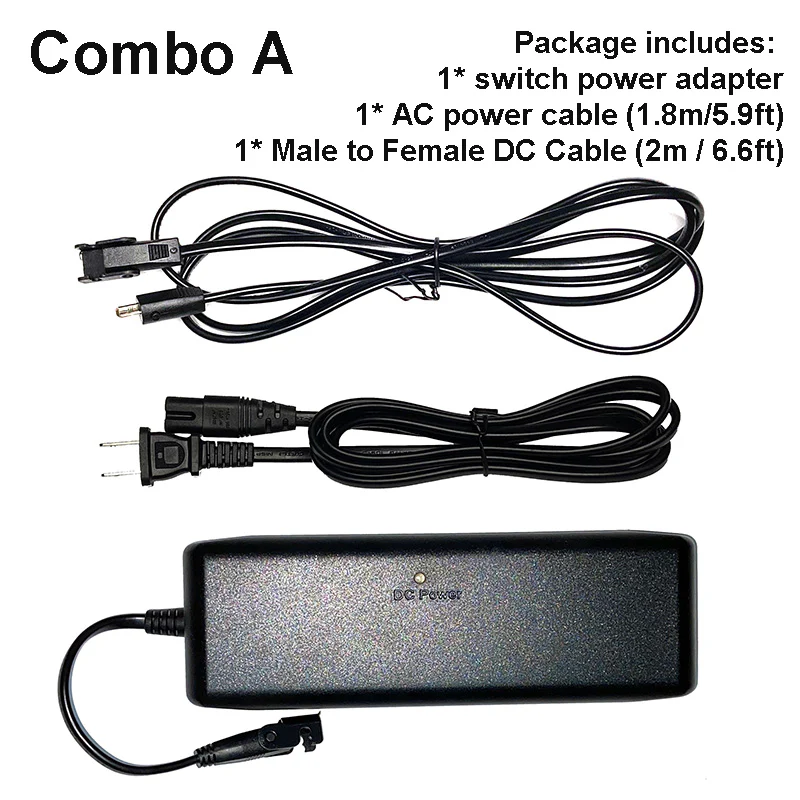

• Combo A: Includes one power supply, one AC cable, and one male-to-female DC cable. It is suitable for single-seat furniture like power recliners, lift chairs, or beds.

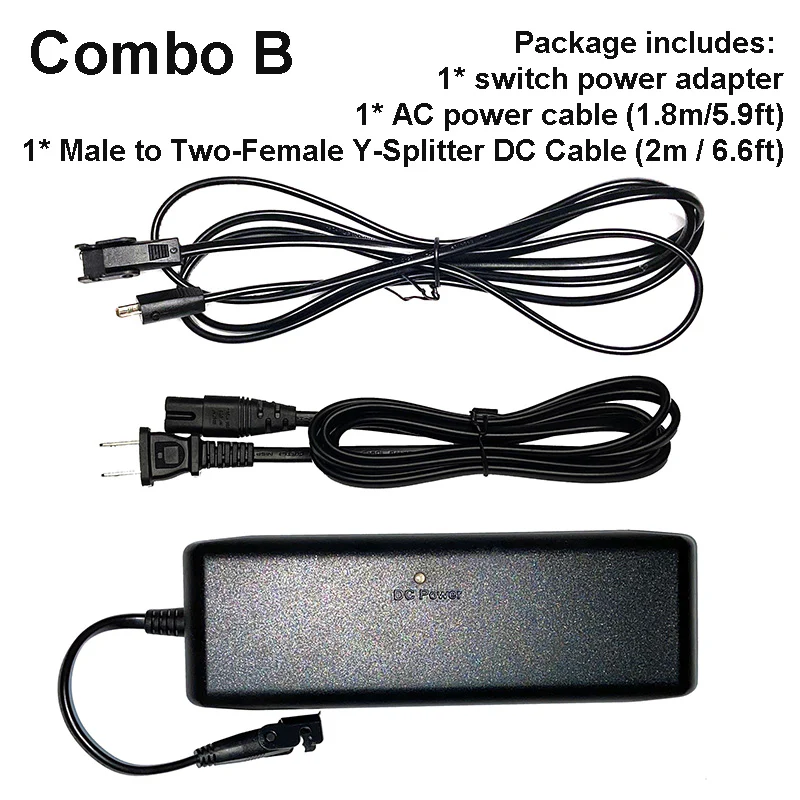

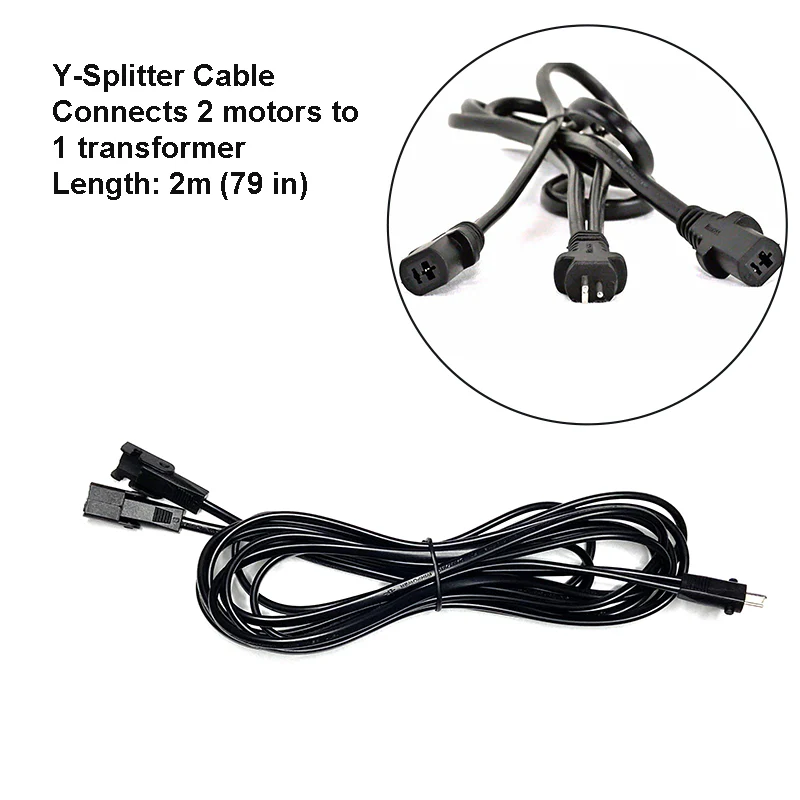

• Combo B: Includes one power supply, one AC cable, and one male-to-two-female Y-splitter DC cable. It is suitable for dual-seat furniture like love seats, sectional sofas, or home theater chairs.

Specifications

• Input: AC 100-240V, 50/60Hz, 1.3A
• Output: DC 29V, 2.0A
• Power Factor: COSØ≥0.5
• Protection Rating: IP20
• Efficiency Level: VI
• Standards: Class 2 power unit. Complies with Canadian ICES-003 and FCC Rules Part 15.


Package Contents

• Combo A
  • 1x Power Supply
  • 1x AC Cable (1.8m / 5.9ft)
  • 1x Male to Female DC Cable (2m / 6.6ft)
• Combo B
  • 1x Power Supply
  • 1x AC Cable (1.8m / 5.9ft)
  • 1x Male to Two-Female Y-Splitter DC Cable (2m / 6.6ft)
• Note: Batteries for the backup compartment are not included.

Caution:

• Risk of electric shock. For dry location use only.
